MORI SEIKI NL-2500MC/1250 MULTI AXIS LIVE TOOLING LATHE
Have one to sell?
ConditionUsed
1 available

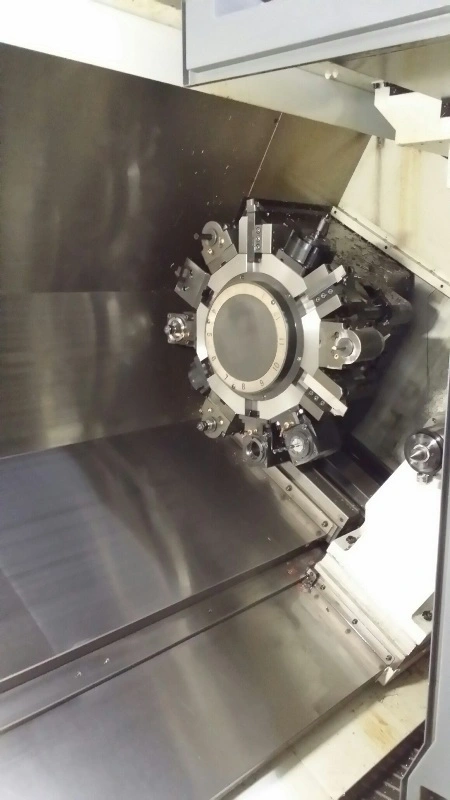

MORI SEIKI NL-2500MC/1250 COMES WITH VERTICAL AND HORIZONTAL LIVE TOOLS, 10" CHUCK, 50" CENTERS AND A MORI SEIKI MSX-850IV CONTROL.
SPECIFICATIONS:
MAX. TURNING DIAMETER: 14.0"
STANDARD TURNING DIAMETER: 10.8"
MAX. TURNING LENGTH: 51.1"
X-AXIS TRAVEL: 10.2"
Z-AXIS TRAVEL: 53.0"
CHUCK SIZE: 10"
MAX. SPINDLE SPEED: 4,000RPM
NUMBER OF TOOL STATIONS: 12 [10]
MORI SEIKI MSX-850IV CNC CONTROL
10" CHUCK
TWO VERTICAL MILL HOLDERS
FOUR HORIZONTAL MILL HOLDERS
CHIP CONVEYOR
ALL SPECS AND OPTIONS MUST BE VERIFIED BY BUYER
MORI SEIKI NL-2500MC/1250 COMES WITH VERTICAL AND HORIZONTAL LIVE TOOLS, 10" CHUCK, 50" CENTERS AND A MORI SEIKI MSX-850IV CONTROL.
Imperial
| Maximum Swing | 31" |
| Max Turning Diameter | 14.4" |
| Main Spindle Bore/Max Bar Capacity | 3.5/ 3.1 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 21.3" |
| Maximum Cutting Length | 51.1" |
| X-Axis Travel (X1, X2, X3) | 10.2 |
| Z-Axis Travel (Z1, Z2, Z3) | 53 |
| C-Axis Indexing (1, 2) | .001 |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.5" |
| Main Spindle Maximum Bar Work | 3.1" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 24.7 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 7.0 |
| Chip Conveyor | Yes |
| Number of Available Live Tool Holders | 2 |
| (HQR) Standard Chuck Dia. Main Spindle (L) | 10" |
| Control | CNC (MORI SEIKI MSX-850IV) |
SPECIFICATIONS:
MAX. TURNING DIAMETER: 14.0"
STANDARD TURNING DIAMETER: 10.8"
MAX. TURNING LENGTH: 51.1"
X-AXIS TRAVEL: 10.2"
Z-AXIS TRAVEL: 53.0"
CHUCK SIZE: 10"
MAX. SPINDLE SPEED: 4,000RPM
NUMBER OF TOOL STATIONS: 12 [10]
MORI SEIKI MSX-850IV CNC CONTROL
10" CHUCK
TWO VERTICAL MILL HOLDERS
FOUR HORIZONTAL MILL HOLDERS
CHIP CONVEYOR
ALL SPECS AND OPTIONS MUST BE VERIFIED BY BUYER
