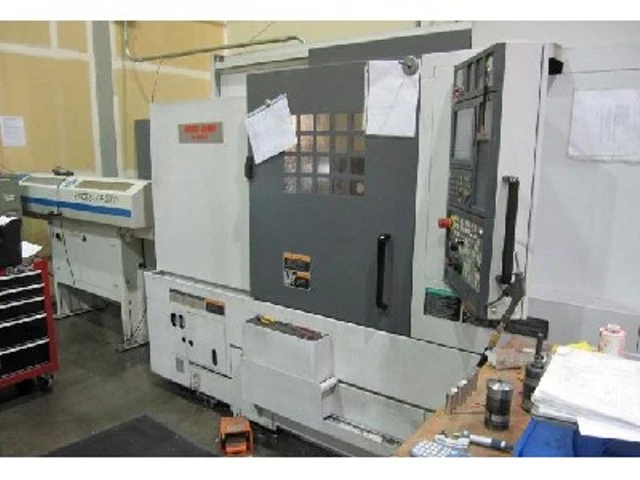

MORI SEIKI NL 2500SY WITH SUB-SPINDLE AND Y AXIS
Have one to sell?
ConditionUsed
1 available
THE MORI SEIKI NL 2500SY COMES WITH THE MORI MSX-850 CONTROL, A 10" CHUCK ON MAIN AND COLLET ON SUB, BAR FEEDER AND PARTS CATCHER - INCLUDES 7 LIVE TOOLS.
CHUCK SIZE 10"
BAR CAPACITY 3.06"
SPINDLE INDEXING FULL C AXIS
SWING OVER BED 36.4"
MAXIMUM CUTTING DIAMETER 14.0"
MAXIMUM CUTTING LENGTH 27.7"
TRAVEL (X / Z AXIS) 10.2" / 31.3"
TRAVEL (Y AXIS) 3.9"
RAPID FEEDRATE (X, Z AXIS / Y AXIS) 1181" / 394" IPM
TURRET TYPE V12 BLOCK
TURRET INDEXING TIME 0.15 SEC
TURRET POSITIONS 12
MAIN SPINDLE SPEED RANGE 4,000 RPM
MAIN SPINDLE MOTOR 25 HP
MAIN SPINDLE NOSE A2-8"
MAIN SPINDLE BORE 3.15"
SUB-SPINDLE SPEED RANGE 6,000 RPM
SUB-SPINDLE NOSE A2-6"
SUB-SPINDLE TRAVEL 28.9"
LIVE TOOL SPINDLE SPEED 6,000 RPM
LIVE TOOL SPINDLE MOTOR 7.5 HP
MACHINE SIZE 122" X 80" X 84"
MACHINE WEIGHT 13,600 LBS
ELECTRICAL 220V OR 440V
MORI MSX-850 CNC CONTROL
CAPPS SOFTWARE
10" LCD SCREEN
C & Y AXIS MACHINING CAPABILITY
BARFEED INTERFACE
SMW SPACE SAVER 2300 SHORT SERVO DRIVEN MAGAZINE BARFEED
10" KITAGAWA CHUCK - MAIN SPINDLE
COLLET CHUCK - SUB SPINDLE
MAIN & SUB TOOL SETTERS
PARTS CATCHER & PARTS EXIT CONVEYOR
LIFT-UP CHIP CONVEYOR
7 LIVE TOOL HOLDERS
SERVO DRIVEN TURRET
WTO PERFORMANCE SERIES TOOLING
(2) OD DRILL/MILL UNIT - TWIN COLLET HOLDER ER-25
(1) FACE 4-SPINDLE COLLET HOLDER ER-25
(2) FACE 2-SPINDLE (EACH END) COLLET HOLDER
(1) TWO POSITION - BORING BAR HOLDER
(2) THREE POSITION - BORING BAR HOLDER
(2) ONE POSITION BORING BAR HOLDER
(2) TWO POSITION - OD CUTTING HOLDER
(1) FOUR POSITION - OD CUTTING HOLDER
(2) CUT-OFF HOLDER
(1) OD COLLET HOLDER ER-32
(8) SPINDLE SLEEVES - ASSORTED SIZES
