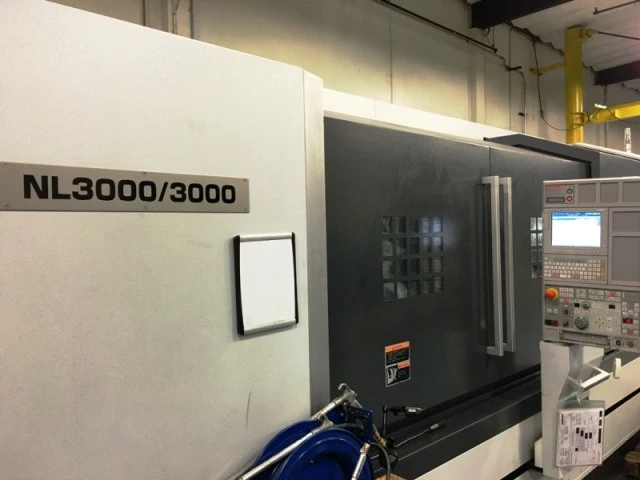

MORI SEIKI NL 3000/ 3000 (120") CNC LATHE
Have one to sell?
ConditionUsed
1 available
THE 2015 MORI SEIKI NL 3000 HAS 120" CENTERS, FANUC CONTROL, TAILSTOCK, 12" CHUCK/ 3.5" BAR CAPACITY, TAILSTOCK AND FIXED STEADY REST.
SPECIFICATIONS:
SWING 39.2
SWING OVER CROSS SLIDE 32.5"
MAXIMUM TURNING DIAMETER 16.54
HORSEPOWER 40
MAXIMUM TURNING LENGTH 122.9
X-AXISTRAVEL 11
Z-AXISTRAVEL 124.8
SPINDLEBORE 4.1"/BAR CAPACITY 3.5
SPINDLENOSE A2-8
MAINSPINDLE 303000 RPM
RAPID TRAVERSE X AND Z 1,181IPM
TOOL TURRET STATIONS 10
TOOL SHANK SIZE SQUARE:1.000 ROUND:2.000
TAILSTOCK MT#5 QUILL DIAMETER 4.3
MACHINE DIMENSIONS (EST) 238X90X98
MACHINE WEIGHT (EST) 19,280LBS.
M720BM (FANUC) CONTROL
TAILSTOCK
TOOL PRESETTER
HIGH OUTPUT SPINDLE 1 HOLLOW CHUCK UNIT B-212A81F + S2091-21A
FIXED STEADY REST (79-9.45) SINGLE
SIGNAL TOWERS (RED, YELLOW, GREEN,) LED TYPE
CHIP CONVEYOR RIGHT DISPOSAL TYPE, HINGE TYPE
ALL AVAILABLE STANDARD TOOLHOLDERS & MANUALS
THE 2015 MORI SEIKI NL 3000 HAS 120" CENTERS, FANUC CONTROL, TAILSTOCK, 12" CHUCK/ 3.5" BAR CAPACITY, TAILSTOCK AND FIXED STEADY REST.
Imperial
| Max. Swing | 39.2" |
| Max Turning Diameter | 16.54" |
| Spindle Bore/Max Bar Capacity | 4.1/ 3.5 |
| Z Travel | 124.8" |
| X Travel | 11" |
| Machining Length | 122.9" |
| Chuck Size | 12" |
| Chuck Type | Hydraullic |
| Spindle Motor | 40 hp |
| Spindle Speeds (RPM) | 3000 |
| Spindle Bore/Bar Capacity | 4.1 in |
| Max. Bar Capacity | 3.5" |
| Turret Tool Positions | 10 |
| Tailstock | Yes |
| Chip Conveyor | Side |
| Control | CNC (M720BM (FANUC)) |
| Dimensions | 238” X 90” X 98” |
| Weight | 19,280 LBS. |
SPECIFICATIONS:
SWING 39.2
SWING OVER CROSS SLIDE 32.5"
MAXIMUM TURNING DIAMETER 16.54
HORSEPOWER 40
MAXIMUM TURNING LENGTH 122.9
X-AXISTRAVEL 11
Z-AXISTRAVEL 124.8
SPINDLEBORE 4.1"/BAR CAPACITY 3.5
SPINDLENOSE A2-8
MAINSPINDLE 303000 RPM
RAPID TRAVERSE X AND Z 1,181IPM
TOOL TURRET STATIONS 10
TOOL SHANK SIZE SQUARE:1.000 ROUND:2.000
TAILSTOCK MT#5 QUILL DIAMETER 4.3
MACHINE DIMENSIONS (EST) 238X90X98
MACHINE WEIGHT (EST) 19,280LBS.
M720BM (FANUC) CONTROL
TAILSTOCK
TOOL PRESETTER
HIGH OUTPUT SPINDLE 1 HOLLOW CHUCK UNIT B-212A81F + S2091-21A
FIXED STEADY REST (79-9.45) SINGLE
SIGNAL TOWERS (RED, YELLOW, GREEN,) LED TYPE
CHIP CONVEYOR RIGHT DISPOSAL TYPE, HINGE TYPE
ALL AVAILABLE STANDARD TOOLHOLDERS & MANUALS
