MORI SEIKI NTX 1000/SZM MULTI AXIS LATHE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MORI SEIKI
Model:
NTX 1000/SZM
Year:
2014
Stock #:
5428
Status:
For Sale
Serial #:
NTX10141108

Description

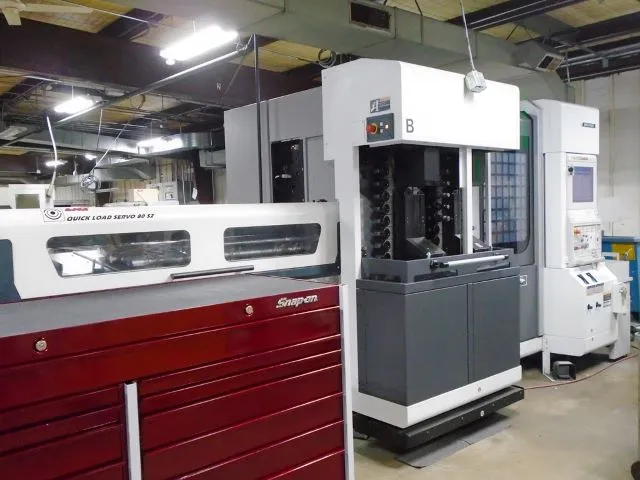

THIS 2014 MORI SEIKI NTX 1000/ SZM COMES WITH 8" & 6" CHUCKS, A 76 TOOL ATC WITH SUB SPINDLE AND LOWER TURRET, HIGH PRESSURE COOLANT, BAR LOADER AND A BUNCH OF CAPTO C-5 TOOLING.

Maximum Swing17.7"449.58 mm
Max Turning Diameter16.9"429.26 mm
Main Spindle Bore/Max Bar Capacity2.9/ 2.562.9/ 2.56
Tail Stock/Sub SpindleSub SpindleSub Spindle
Distance Between Spindles41.3"1,049 mm
X-Axis Travel (X1, X2, X3)17.9, 6.317.9, 6.3
Z-Axis Travel (Z1, Z2, Z3)31.4, 28.731.4, 28.7
Y-Axis Travel (Y1, Y2, Y3)+/- 4.1"+/- 4.1"
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.9"73.66 mm
Main Spindle Maximum Bar Work2.56"65.024 mm
Main Spindle Speed6,000 RPM6,000 RPM
Sub Spindle/2nd Spindle Chuck Size66
Sub Spindle/2nd Spindle Bore Size2.07"2.07"
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed6,000 RPM6,000 RPM
ATC Magazine Capacity7676
Number of Turrets11
Turret Tool Positions 1, 21010
Turret Rotary Tool Spindle Speed 1, 21200012000
Bar FeedYesYes
Chip ConveyorYesYes
(HQR) Standard Chuck Dia. Main Spindle (L)8"203.2 mm
(HQR) Standard Chuck Dia. Second Spindle (R)6"152.4 mm
ControlCNC (MSX-711-IV)CNC (MSX-711-IV)
Weight22,046 LBS22,046 LBS

SPECIFICATIONS:
MAX SWING OF WORK PIECE                 17.7"
MAX TURNING DIAM (TOOL SPINDLE/TURRET Z)16.9"/10.8+
MAX TURNING LENGTH                      31.5"
MAX DISTANCE BETWEEN CENTERS            41.3"
SPINDLE 1 SPEED                         6000 RPM
SPINDLE 1 THRU DIAMETER                 2.9" OPTION
SPINDLE 1 CHUCK SIZE                    8"
SPINDLE 2 SPEED                         6000 RPM
SPINDLE 2 HOLE DIAMETER                 2.4"
CHUCK SIZE                              6"
TOOL SPINDLE TAPER                      CAPTO 5
TOOL SPINDLE SPEED:                     12,000 RPM
SWIVEL RANGE OF B-AXIS                  +/- 120 DEGREES
SWIVEL SPEED OF B-AXIS                  100 RPM
TOOL STORAGE CAPACITY                   76 TOOLS (CAPTO 5)
LOWER TURRET NUMBER OF STATIONS         10
                (OF WHICH 10 ARE LIVE, MAX SPEED  10000 RPM)
TOOL SPINDLE TRAVEL X, Y, Z             17.9 +/-, 4.1, 31.4"  (+6.5 ATC)
TOOL SPINDLE RAPID TRAVERSE             X: 1574, Y:  1574, Z: 1968 IPM
TURRET 2 TRAVEL: X/Z                    6.3"/28.7 IPM
RAPID TRAVERSE:  X/Z                    1102+/1417 IPM
SPINDLE 2 TRAVEL A                      32.3"
SPINDLE 2 RAPID TRAVERSE A              1417 IPM
POWER SOURCE                            45.3 KVA
COOLANT TANK CAPACITY                   410
MACHINE WEIGHT                          22046

MSX-711-IV CONTROL
CHIP CONVEYOR
HIGH PRESSURE COOLANT
LNS QUICKLOAD S2 BARFEED
TOOLING INCLUDED (SEE PICTURE/ LIST ATTACHED)
ALL AVAILABLE MANUALS
