MORI SEIKI SL-253B

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
MORI SEIKI
Model:
SL-253B
Year:
2001
Stock #:
5611
Status:
For Sale

Description

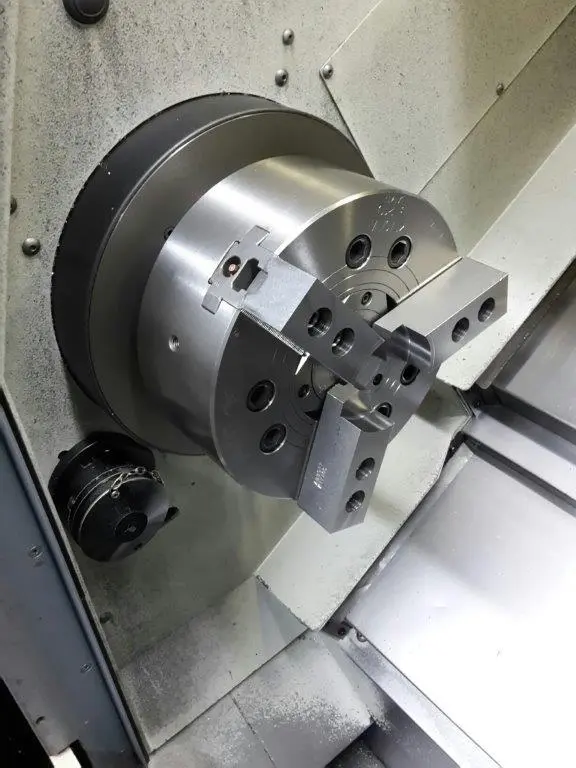

THIS MORI SEIKI SL-253B HAS A 10 STATION TURRET, 10" CHUCK, MORI SEIKI MSC 500 CONTROL AND TAILSTOCK.

Max. Swing26.7"678.18 mm
Max Turning Diameter15.3"388.62 mm
Spindle Bore/Max Bar Capacity3.15/ 2.853.15/ 2.85
Z Travel19.5"495.3 mm
X Travel9.3"236.22 mm
Machining Length19.1"485.14 mm
Chuck Size10"254 mm
Chuck TypeHydraullicHydraullic
Spindle Motor20 hp
Spindle Speeds (RPM)35003500
Spindle Bore3.15 in
Max. Bar Capacity2.85"72.39 mm
Turret Tool Positions1212
TailstockYesYes
ControlCNC (FANUC MSG 501)CNC (FANUC MSG 501)

SPECIFICATIONS:
MAX SWING OVER BED             26.7"
MAX SWING OVER CARRIAGE        20.1"
MAX TURNING DIAMETER           15.3"
MAX TAILSTOCK POSITION         22.6"
MAX TURNING LENGTH             19.1"
CROSS TRAVEL (X-AXIS)          9.3"
LONGITUDINAL TRAVEL (Z-AXIS)   19.5"
NUMBER OF TURRETS              (1)
TOOL POSITIONS                 12 TOTAL
SPINDLE BAR CAPACITY           2.85"
SPINDLE NOSE                   A2-8
SPINDLE SPEED RANGE            35-3500 RPM
SPINDLE HORSEPOWER             20 HP
POWER                          230 V, 3 PH, 60 HZ.

FANUC MSG 501 CNC CONTROL
ALL AVAILABLE MANUALS
