MORI SEIKI SL-400B CNC LATHE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
MORI SEIKI
Model:
SL-400B
Year:
1998
Stock #:
1897
Status:
For Sale

Description

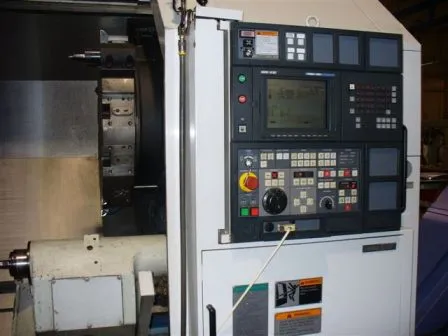

THIS MORI SEIKI SL-400B COMES EQUIPPED WITH AN MSC-501 CONTROL, 20" HYDRAULIC CHUCK, TAILSTOCK AND 40" CENTERS.

Max. Swing27.9"708.66 mm
Max Turning Diameter24.4"619.76 mm
Spindle Bore/Max Bar Capacity5.11/ 4.65.11/ 4.6
Z Travel39.1"993.14 mm
X Travel13.5"342.9 mm
Distance Between Centers37.737.7
Chuck Size20"508 mm
Chuck TypeHydraullicHydraullic
Spindle Motor50 hp
Spindle Speeds (RPM)24002400
Spindle Bore5.11 in
Max. Bar Capacity4.6"116.84 mm
Turret Tool Positions1212
TailstockYesYes
Chip ConveyorYesYes
ControlCNC (MSC 501)CNC (MSC 501)

SPECIFICATIONS:
SWING OVER CROSS SLIDE 27.9 "
MAXIMUM MACHINING DIAMETER 24.4 "
DISTANCE BETWEEN CENTERS 37.7 "
SPINDLE SPEED 0 - 2400 RPM
SPINDLE BORE 5.11 "
MAIN MOTOR 50 HP
SPINDLE NOSE A2-11
TURRET: NUMBER OF POSITIONS 12
X-AXIS TRAVEL 13.5 "
Z-AXIS TRAVEL 39.1 "
TAILSTOCK - QUILL DIAMETER 5.9 "
QUILL TRAVEL 5.9 "
TAPER #5 MT
BODY TRAVEL 33.4 "
CHUCK: DIAMETER 20 "
HOLE THRU 4.6 "
NUMBER OF JAWS 3

MSC-501/CRT CNC CONTROL
20" 3-JAW HYDRAULIC CHUCK
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR
STANDARD TOOLING PACKAGE
FLOOD COOLANT SYSTEM
COOLANT ENCLOSURE
RS-232 INTERFACE
