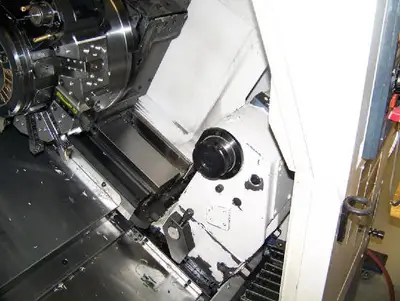

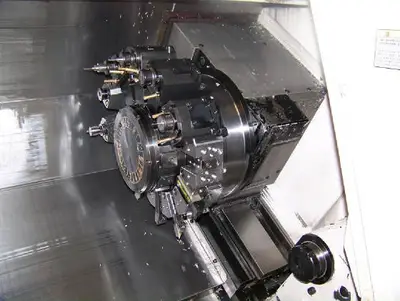

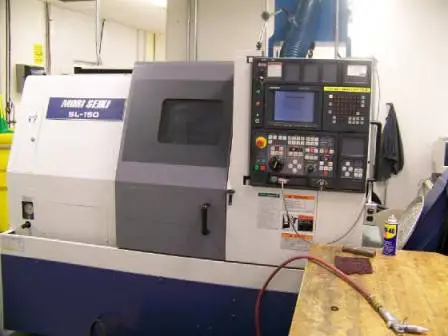

MORI SEIKI SL 150MC CNC TURNING CENTER

SPECIFICATIONS:
SWING OVER BED 24.4"
SWING OVER CROSS SLIDE 17.9"
BETWEEN CENTERS 22.8"
MAX. TURNING DIAMETER 16.9"
STANDARD TURNING DIAMETER 6.69"
MAX. TURNING LENGTH 19.7"
BAR WORK CAPACITY 1.77"
Z-AXIS TRAVEL 20.5"
SPINDLE SPEED RANGE 50 - 5,000 RPM
TYPE OF SPINDLE NOSE JIS A2-5
THROUGH SPINDLE HOLE DIAMETER 2.2"
MIN SPINDLE INDEXING ANGLE 0.001 DEGREE
SPINDLE BEARING INNER DIAMETER 3.5"
# OF TOOL STATIONS 12
SHANK HEIGHT FOR SQUARE TOOL 3/4"
SHANK DIAMETER FOR BORING BAR 1-1/4"
MAX. ROTARY TOOL SPINDLE SPEED 3,000 RPM
TAILSTOCK TRAVEL 20.3"
TAPER HOLE OF TAILSTOCK SPINDLE MT 4
TAILSTOCK SPINDLE TRAVEL 4.7"
RAPID TRAVERSE RATE (X/Z-AXIS) 708.7/944.9 IPM
SPINDLE DRIVE MOTOR (30 MIN/CONT) 7.5/5.5 HP
ROTARY TOOL SPINDLE DRIVE MTR (INT/CONT) 3.8/2.7 HP
DIMENSIONS (APPROX.) 86.6" X 63.2" X 70.5"
WEIGHT (APPROX.) 9,020 LBS
