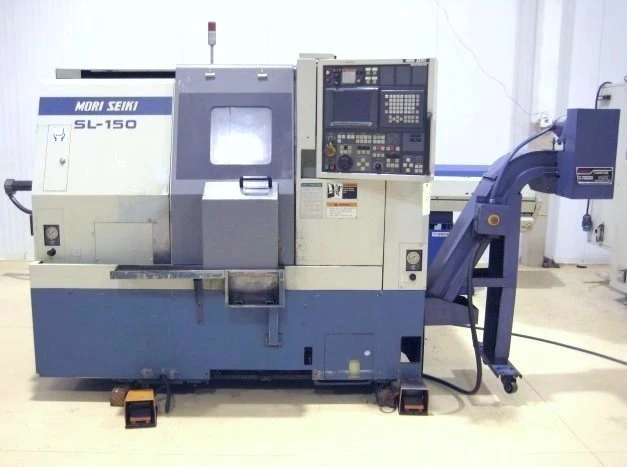

MORI SEIKI SL-150SMC MULTI-AXIS CNC TURNING CENTER
Have one to sell?
ConditionUsed
1 available
MORI SEIKI SL-150SMC WITH A FANUC MSC 501 CONTROL, COLLETS AND 6" & 5" CHUCKS, AUTOMATIC PARTS CATCHER SUB-SPINDLE AND 4 LIVE TOOLS.
SPECIFICATIONS:
SWING OVER BED / CROSS SLIDE 24.4" / 17.9"
INTERFERENCE WITH FRONT COVER 18.0"
MAX. TURNING DIAMETER 16.9"
MAX. DIST BETWEEN SPINDLES 24.8"
X AXIS TRAVEL 9.1"
Z AXIS TRAVEL 20.5"
B AXIS TRAVEL (SUB SPINDLE) 16.9"
RAPID TRAVERSE RATE X / Z AXES 707 IPM / 945 IPM
SPINDLE NOSE (MAIN / SUB) A2-5 / A2-5
SPINDLE BORE / BAR CAPACITY 2.2" / 1.86"
SPINDLE SPEEDS (MAIN SPINDLE) 60 - 5,000 RPM
SPINDLE SPEEDS (SUB SPINDLE) 60 - 5,000 RPM
SPINDLE MOTOR (MAIN / SUB) 15 HP / 11 HP
TURRET CAPACITY 12 STATION
LIVE TOOLING MOTOR 3.5 HP
LIVE TOOLING SPEEDS 3,000 RPM
APPROX DIMENSIONS 88" x 71" x 73"
MACHINE WEIGHT (APPROXIMATE) 9500 LBS
MORI SEIKI MSC-501 (FANUC) CNC CONTROL WITH 10.4" LCD
COLLET CHUCKS (16C) BOTH MAIN AND SUB SPINDLES
6" & 5" 3-JAW CHUCKS ALSO
IN-MACHINE MANUAL TOOL PRESTTER ARM
AUTO PARTS CATCHER,
(4) LIVE/REVOLVING TOOL HOLDERS
CHIP CONVEYOR (TURBO LIFT-UP)
SUB SPINDLE AIR BLAST
ALL AVAILABLE MANUALS
STANDARD COOLANT SYSTEM WITH TANK & PUMP
MORI SEIKI SL-150SMC WITH A FANUC MSC 501 CONTROL, COLLETS AND 6" & 5" CHUCKS, AUTOMATIC PARTS CATCHER SUB-SPINDLE AND 4 LIVE TOOLS.
Imperial
| Maximum Swing | 24.4" |
| Max Turning Diameter | 16.9" |
| Main Spindle Bore/Max Bar Capacity | 2.2" / 1.86" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Swing Over Cross Slide | 17.9" |
| Distance Between Spindles | 24.8" |
| X-Axis Travel (X1, X2, X3) | 9.1 |
| Z-Axis Travel (Z1, Z2, Z3) | 20.5 |
| W-Axis Travel Sub Spindle | 16.9 in |
| Main Spindle Chuck Type | Collet |
| Main Spindle Bore Diameter | 2.2" |
| Main Spindle Maximum Bar Work | 1.86" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 15/ 11 |
| Sub Spindle/2nd Spindle Bore Size | 1.86 |
| Sub Spindle/2nd Spindle Chuck Type | Collet |
| Sub Spindle/2nd Spindle Speed | 5,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 15/ 11 |
| Turret Tool Positions 1, 2 | 12 |
| B-Axis Travel | 16.9 |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Number of Available Live Tool Holders | 4 |
| (HQR) Standard Chuck Dia. Main Spindle (L) | 6" |
| (HQR) Standard Chuck Dia. Second Spindle (R) | 6" |
| Control | CNC (MORI SEIKI MSC-501) |
| Dimensions | 88" x 71" x 73" |
| Weight | 9500 LBS |
SPECIFICATIONS:
SWING OVER BED / CROSS SLIDE 24.4" / 17.9"
INTERFERENCE WITH FRONT COVER 18.0"
MAX. TURNING DIAMETER 16.9"
MAX. DIST BETWEEN SPINDLES 24.8"
X AXIS TRAVEL 9.1"
Z AXIS TRAVEL 20.5"
B AXIS TRAVEL (SUB SPINDLE) 16.9"
RAPID TRAVERSE RATE X / Z AXES 707 IPM / 945 IPM
SPINDLE NOSE (MAIN / SUB) A2-5 / A2-5
SPINDLE BORE / BAR CAPACITY 2.2" / 1.86"
SPINDLE SPEEDS (MAIN SPINDLE) 60 - 5,000 RPM
SPINDLE SPEEDS (SUB SPINDLE) 60 - 5,000 RPM
SPINDLE MOTOR (MAIN / SUB) 15 HP / 11 HP
TURRET CAPACITY 12 STATION
LIVE TOOLING MOTOR 3.5 HP
LIVE TOOLING SPEEDS 3,000 RPM
APPROX DIMENSIONS 88" x 71" x 73"
MACHINE WEIGHT (APPROXIMATE) 9500 LBS
MORI SEIKI MSC-501 (FANUC) CNC CONTROL WITH 10.4" LCD
COLLET CHUCKS (16C) BOTH MAIN AND SUB SPINDLES
6" & 5" 3-JAW CHUCKS ALSO
IN-MACHINE MANUAL TOOL PRESTTER ARM
AUTO PARTS CATCHER,
(4) LIVE/REVOLVING TOOL HOLDERS
CHIP CONVEYOR (TURBO LIFT-UP)
SUB SPINDLE AIR BLAST
ALL AVAILABLE MANUALS
STANDARD COOLANT SYSTEM WITH TANK & PUMP
