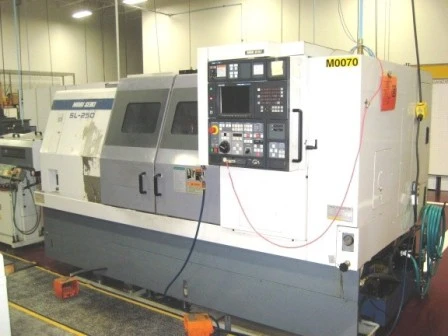

MORI SEIKI SL 250BSMC CNC LATHE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MORI SEIKI
Model:
SL 250BSMC
Year:
1998
Stock #:
2307
Status:
For Sale

Description

MORI SEIKI SL 250BSMC WITH FANUC MSC 501 CONTROL, 10" CHUCK ON MAIN AND 8" ON SUBSPINDLE WITH FULL C AXIS ON BOTH SPINDLES.

Maximum Swing26.77"679.96 mm
Max Turning Diameter15.31"388.87 mm
Main Spindle Bore/Max Bar Capacity3.38/ 2.753.38/ 2.75
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Swing Over Cross Slide20.08"510.03 mm
Distance Between Spindles29.61"752.09 mm
X-Axis Travel (X1, X2, X3)6.36.3
Z-Axis Travel (Z1, Z2, Z3)19.519.5
C-Axis Indexing (1, 2).001, .001.001, .001
Main Spindle Chuck Size10"254 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3.38"85.852 mm
Main Spindle Maximum Bar Work2.75"69.85 mm
Main Spindle Speed3,500 RPM3,500 RPM
Main Spindle Horsepower (CONT. /30 MINS)20/ 1520/ 15
Sub Spindle/2nd Spindle Chuck Size88
Sub Spindle/2nd Spindle Bore Size2.442.44
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed3,500 RPM3,500 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)20/ 1520/ 15
Turret Tool Positions 1, 21010
Turret Rotary Tool Spindle Speed 1, 240004000
Turret Rotary Tool Horse Power 1, 21010
Bar FeedYesYes
(HQR) Standard Chuck Dia. Main Spindle (L)10"254 mm
(HQR) Standard Chuck Dia. Second Spindle (R)8"203.2 mm
ControlCNC (MORI FANUC MSC501)CNC (MORI FANUC MSC501)

SPECIFICATIONS:
SWING OVER BED 26.77"
SWING OVER CROSS SLIDE 20.08"
DISTANCE BETWEEN SPINDLE NOSES 29.61"
MAX. TURNING DIAMETER 15.31"
MAX. TURNING LENGTH 12.76"
SPINDLE BORE 3.38"
SPINDLE NOSE A2-8
SPINDLE SPEEDS 35-3500 RPM
SPINDLE DRIVE MOTOR 20 HP/15 HP
LIVE TOOLING SPINDLE SPEEDS 4000 RPM

MORI FANUC MSC501 CONTROL
10” CHUCK MAIN SPINDLE
8” CHUCK SUB SPINDLE
CHIP CONVEYOR
FULL C-AXIS BOTH SPINDLES
BAR FEED
