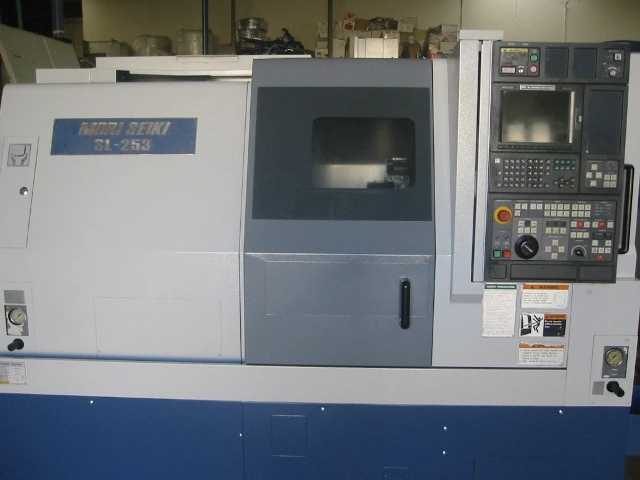

MORI SEIKI SL253BMC MULTI AXIS LATHE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MORI SEIKI
Model:
SL 253BMC
Year:
2000
Stock #:
3007
Status:
For Sale
Serial #:
2058

Description

MORI SEIKI SL253BMC CNC LATHE HAS 10" KITAGAWA CHUCK, 4 LIVE TOOLS, TAILSTOCK AND A MAPPS MSG-501 CONTROL.

Maximum Swing26.8"680.72 mm
Max Turning Diameter15.3"388.62 mm
Main Spindle Bore/Max Bar Capacity3.4/ 2.83.4/ 2.8
Tail Stock/Sub SpindleTail StockTail Stock
Maximum Swing Over Cross Slide20.1"510.54 mm
X-Axis Travel (X1, X2, X3)9.259.25
Z-Axis Travel (Z1, Z2, Z3)2020
C-Axis Indexing (1, 2).001.001
Main Spindle Bore Diameter3.4"86.36 mm
Main Spindle Maximum Bar Work2.8"71.12 mm
Main Spindle Speed3,500 RPM3,500 RPM
Main Spindle Horsepower (CONT. /30 MINS)20/ 1520/ 15
Turret Tool Positions 1, 21010
Turret Rotary Tool Spindle Speed 1, 230003000
Turret Rotary Tool Horse Power 1, 27.07.0
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes
(HQR) Standard Chuck Dia. Main Spindle (L)10"254 mm
ControlCNC (MAPPS MSG-501)CNC (MAPPS MSG-501)

SPECIFICATIONS:
SWING OVER BED                         26.8"
SWING OVER CROSS SLIDE                 20.1"
MAXIMUM TURNING DIAMETER               15.3"
MAXIMUM TURNING LENGTH                 19.1"
SPINDLE NOSE                           A2-8
HOLE THROUGH SPINDLE                   3.4"
BAR CAPACITY                           2.8"
"C" AXIS INDEXING(DEGREE)              .001
SPINDLE SPEED(MAXIMUM RPM)             3,500
SPINDLE SPEED (ROTARY TOOLS)           3,000
MAIN MOTOR(HP)                         20/15
TURRET TOOL POSITIONS                  10

MAPPS MSG-501 CNC CONTROL
10" KITAGAWA B210 CHUCK
4 LIVE TOOLS (2-X / 2-Z)
TAILSTOCK
TOOL PRESETTER
CHIP CONVEYOR
TORIT MIST COLLECTOR
ALL AVAILABLE TOOLING AND MANUALS

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MORI SEIKI
Model:
SL 253BMC
Year:
2000
Stock #:
3007
Status:
For Sale
Serial #:
2058

Description

MORI SEIKI SL253BMC CNC LATHE HAS 10" KITAGAWA CHUCK, 4 LIVE TOOLS, TAILSTOCK AND A MAPPS MSG-501 CONTROL.

Specifications

Imperial

Maximum Swing26.8"
Max Turning Diameter15.3"
Main Spindle Bore/Max Bar Capacity3.4/ 2.8
Tail Stock/Sub SpindleTail Stock
Maximum Swing Over Cross Slide20.1"
X-Axis Travel (X1, X2, X3)9.25
Z-Axis Travel (Z1, Z2, Z3)20
C-Axis Indexing (1, 2).001
Main Spindle Bore Diameter3.4"
Main Spindle Maximum Bar Work2.8"
Main Spindle Speed3,500 RPM
Main Spindle Horsepower (CONT. /30 MINS)20/ 15
Turret Tool Positions 1, 210
Turret Rotary Tool Spindle Speed 1, 23000
Turret Rotary Tool Horse Power 1, 27.0
Chip ConveyorYes
Tool Eye Automatic Front SpindleYes
(HQR) Standard Chuck Dia. Main Spindle (L)10"
ControlCNC (MAPPS MSG-501)

SPECIFICATIONS:
SWING OVER BED                         26.8"
SWING OVER CROSS SLIDE                 20.1"
MAXIMUM TURNING DIAMETER               15.3"
MAXIMUM TURNING LENGTH                 19.1"
SPINDLE NOSE                           A2-8
HOLE THROUGH SPINDLE                   3.4"
BAR CAPACITY                           2.8"
"C" AXIS INDEXING(DEGREE)              .001
SPINDLE SPEED(MAXIMUM RPM)             3,500
SPINDLE SPEED (ROTARY TOOLS)           3,000
MAIN MOTOR(HP)                         20/15
TURRET TOOL POSITIONS                  10

Equipped With

MAPPS MSG-501 CNC CONTROL
10" KITAGAWA B210 CHUCK
4 LIVE TOOLS (2-X / 2-Z)
TAILSTOCK
TOOL PRESETTER
CHIP CONVEYOR
TORIT MIST COLLECTOR
ALL AVAILABLE TOOLING AND MANUALS
