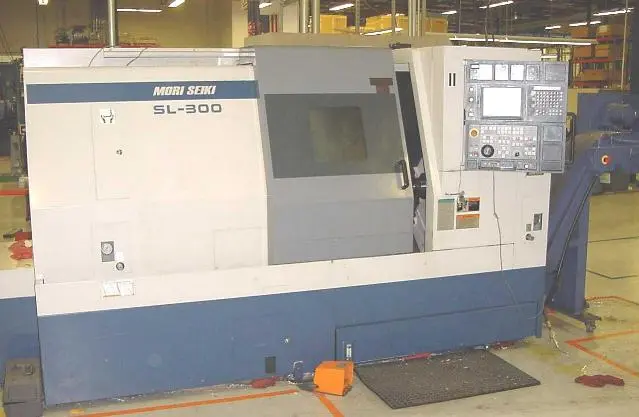

MORI SEIKI SL 300B/700
Have one to sell?
ConditionUsed
1 available
NICE LITTLE 2 AXIS MORI SEIKI SL 300B/ 700 IS EQUIPPED WITH FANUC 18T CNC CONTROL, 12" 3-JAW HYDRAULIC CHUCK, TOOL PRESETTER AND CHIP CONVEYOR.
SPECIFICATIONS:
SWING OVER BED 28.1"
SWING OVER CARRIAGE 19.7"
MAX. TURNING DIAMETER 16.5"
SPINDLE NOSE A2-8"
HOLE THROUGH SPINDLE 4.1"
SPINDLE SPEEDS 25 - 2500 RPM
MAX MACHINING DIA. 10.2"
MAX WORK LENGTH 29.3"
X AXIS TRAVEL 9.8"
Z AXIS TRAVEL 31.5"
TAILSTOCK QUILL DIAMETER 4.3"
QUILL TAPER MT #5
QUILL STROKE/TAILSTOCK STROKE 5.9"
TAILSTOCK TRAVEL 22.4"
TURRET TOOL POSITION 10
MAIN MOTOR 40 HP AC
MACHINE WEIGHT 14,300 LBS.
FANUC 18T CNC CONTROL
12" 3-JAW HYDRAULIC CHUCK
TOOL PRESETTER
CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS AND WEDGEBLOCKS
ALL MANUALS
NICE LITTLE 2 AXIS MORI SEIKI SL 300B/ 700 IS EQUIPPED WITH FANUC 18T CNC CONTROL, 12" 3-JAW HYDRAULIC CHUCK, TOOL PRESETTER AND CHIP CONVEYOR.
Imperial
| Max. Swing | 28.1" |
| Max Turning Diameter | 16.5" |
| Spindle Bore/Max Bar Capacity | 4.1/ 3.5 |
| Z Travel | 31.5" |
| X Travel | 9" |
| Machining Length | 31" |
| Chuck Size | 12" |
| Chuck Type | Hydraullic |
| Spindle Motor | 40 hp |
| Spindle Speeds (RPM) | 2500 |
| Spindle Bore/Bar Capacity | 4.1 in |
| Max. Bar Capacity | 3.5" |
| Turret Tool Positions | 10 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Control | CNC (FANUC 18T) |
| Weight | 14,300 |
SPECIFICATIONS:
SWING OVER BED 28.1"
SWING OVER CARRIAGE 19.7"
MAX. TURNING DIAMETER 16.5"
SPINDLE NOSE A2-8"
HOLE THROUGH SPINDLE 4.1"
SPINDLE SPEEDS 25 - 2500 RPM
MAX MACHINING DIA. 10.2"
MAX WORK LENGTH 29.3"
X AXIS TRAVEL 9.8"
Z AXIS TRAVEL 31.5"
TAILSTOCK QUILL DIAMETER 4.3"
QUILL TAPER MT #5
QUILL STROKE/TAILSTOCK STROKE 5.9"
TAILSTOCK TRAVEL 22.4"
TURRET TOOL POSITION 10
MAIN MOTOR 40 HP AC
MACHINE WEIGHT 14,300 LBS.
FANUC 18T CNC CONTROL
12" 3-JAW HYDRAULIC CHUCK
TOOL PRESETTER
CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS AND WEDGEBLOCKS
ALL MANUALS
