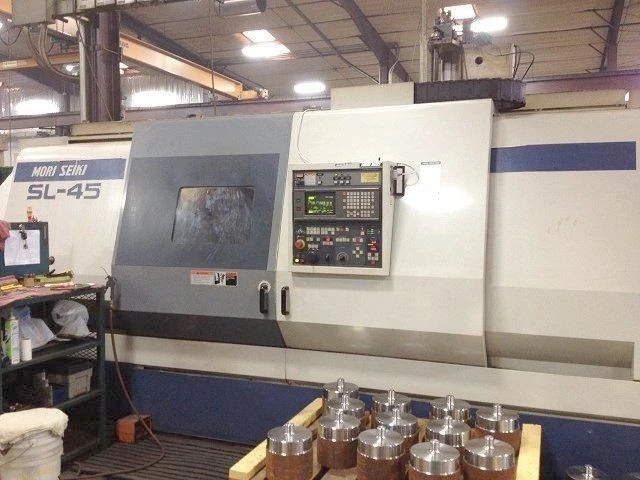

MORI SEIKI SL 45B/1500

SPECIFICATIONS:
SWING OVER BED                      28.7"
SWING OVER CROSS SLIDE              18.1"
MAX. MACHINING DIAMETER             19.3"
DISTANCE BETWEEN CENTERS            67.4"
MAX. MACHINING LENGTH               60.2"
SPINDLE BORE DIA.                   4.7"
FRONT BEARING INNER DIAMETER        7.1"
CHUCK SIZE                          15"
SPINDLE NOSE                        A2-11
SPINDLE SPEEDS                      3-1500 RPM
NUMBER OF GEAR RANGES               4
NUMBER OF TURRET POSITION           12
X - AXIS TRAVEL                     10.6"
Z - AXIS TRAVEL                     63"
RAPID TRAVERSE X/Z                  472/590 IPM
TAILSROCK QUILL DIAMETER            5.1"
TAILSTOCK QUILL STROKE              5.9"
TAILSTOCK TRAVEL                    56.8"
MAIN MOTOR                          40 HP AC
MACHINE WEIGHT                      28,600 LBS.
