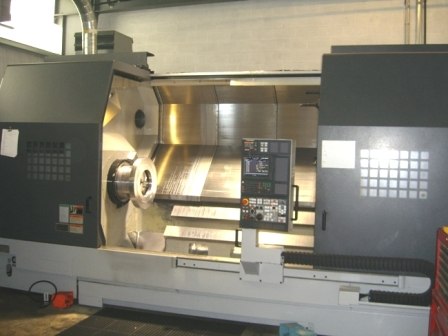

MORI SEIKI SL 603B/2000

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
MORI SEIKI
Model:
SL 603B/2000
Year:
2008
Stock #:
2087
Status:
For Sale

Description

THIS MORI SEIKI SL 603C/2000 IS EQUIPPED WITH A MORI SEIKI MSX-400III CONTROL, A 15" CHUCK, MAPPS CONVERSATIONAL PROGRAMMABLE AND TOW-A-LONG TAILSTOCK.

Max. Swing39.1"993.14 mm
Max Turning Diameter35.4"899.16 mm
Spindle Bore/Max Bar Capacity6.56.5
Z Travel84.6"2,148.8 mm
X Travel19.1"485.14 mm
Distance Between Centers90.690.6
Chuck Size21"533.4 mm
Chuck TypeAirAir
Spindle Motor50 hp
Spindle Speeds (RPM)15001500
Spindle Bore7.28 in
Max. Bar Capacity6.5"165.1 mm
Turret Tool Positions1212
TailstockYesYes
ControlCNC (MSX-500III)CNC (MSX-500III)

SPECIFICATIONS:
MAX. SWING                                  39.1"
SWING OVER CROSS SLIDE                      28.9"
MAX. MACHINING DIAMETER                     35.4"
MAX. MACHINING LENGTH                       78.7"
DISTANCE BETWEEN CENTERS                    90.6"
SPINDLE BORE DIA.                           7.28"
CHUCK SIZE                                  15"
SPINDLE NOSE                                A2-15"
SPINDLE SPEEDS                              1500 RPM
NUMBER OF TURRET POSITION                   12
X - AXIS TRAVEL                             19.1"
Z - AXIS TRAVEL                             84.6"
RAPID TRAVERSE                              787 IPM
TAILSROCK QUILL DIAMETER                    5.9"
TAILSTOCK QUILL STROKE                      5.9"
TAILSTOCK TRAVEL                            82.7"
MAIN MOTOR                                  50 H.P.AC

EQUIPPED WITH:
MSX500III CNC CONTROL
MAPPS CONVERSTIONAL PROGRAMMING
TOW-A-LONG TAILSTOCK BODY AND QUILL
21" CHUCK 6.5" HOLE W/CYLINDER PKG)
AUTOMATIC TOOL PRE-SETTER
DOOR INTERLOCK
CHIP CONVEYOR SIDE DISCHARGE
ALL AVAILABLE MANUALS
