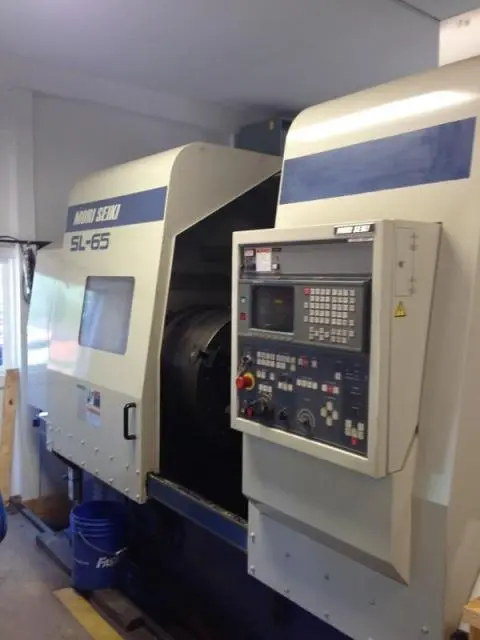

MORI SEIKI SL 65C CNC LATHE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
MORI SEIKI
Model:
SL 65C
Year:
1998
Stock #:
4003
Status:
For Sale

Description

A LARGE 10.8" SPINDLE BORE MAKES THE MORI SEIKI SL 65C THE PERFECT OIL FIELD MACHINE. IT HAS A FANUC 16T CONTROL AND SMW AUTOBLOK BB-N-630 24" CHUCKS ON FRONT AND REAR.

Max. Swing42.6"1,082 mm
Max Turning Diameter25.6"650.24 mm
Spindle Bore/Max Bar Capacity10.810.8
Z Travel27.3"693.42 mm
X Travel13.8"350.52 mm
Machining Length27.3"693.42 mm
Chuck Size24.8"629.92 mm
Chuck TypeAirAir
Spindle Motor50 hp
Spindle Speeds (RPM)660660
Max. Bar Capacity10.8"274.32 mm
TailstockNoNo
Rear Chuck Diameter24.8"629.92 mm
Rear Chuck TypeAirAir
ControlCNC (FANUC 16T)CNC (FANUC 16T)
Weight22,000 LBS22,000 LBS

SPECIFICATIONS:
SWING OVER BED                          42.6"
MAX. TURNING DIA                        25.6"
SWING OVER CROSS SLIDE                  26"
MAX. TURNING LENGTH                     27.3"
SPINDLE SPEED                           660 RPM
BAR CAPACITY                            10.8"
SPINDLE NOSE                            A1-20
NUMBER OF TOOL STATIONS                 12
SPINDLE MOTOR                           50/40 HP
APPROX WEIGHT                           22,000 LBS

FANUC 16T CNC CONTROL
SMW AUTOBLOK BB-N-630-325-3-ES CHUCKS ON FRONT AND REAR
NO TAILSTOCK
CHIP CONVEYOR
INSTALLED IN MID 1999 BY MORI
