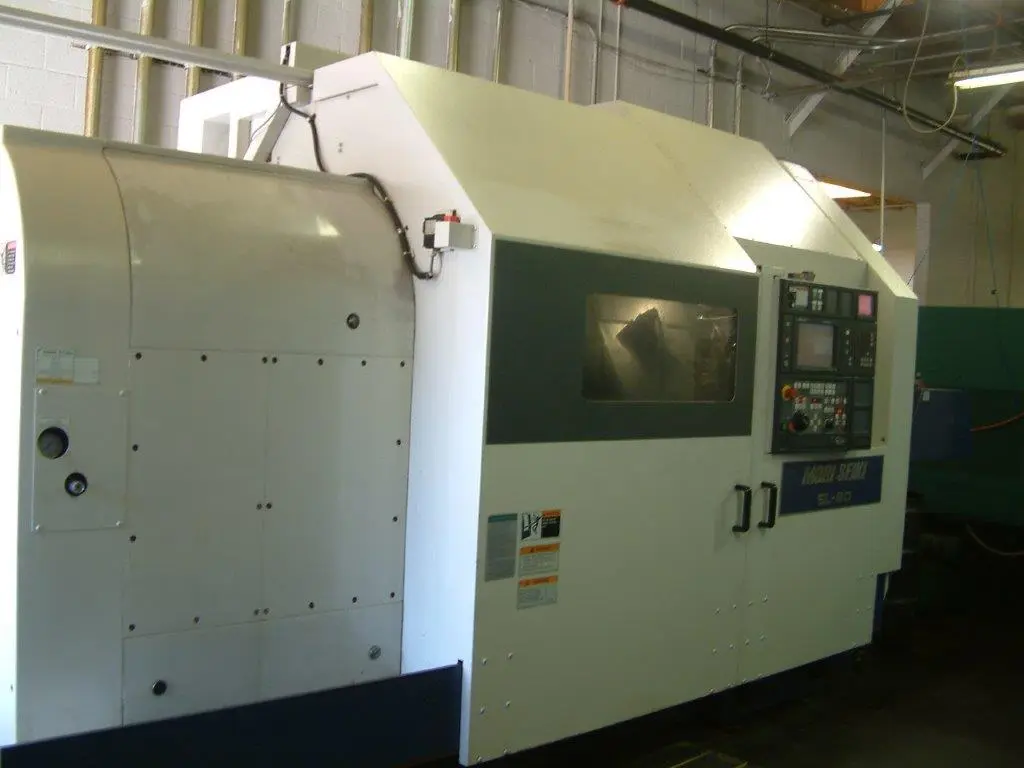

MORI SEIKI SL 80F BIG BORE CNC LATHE
Have one to sell?
ConditionUsed
1 available
THIS MORI SEIKI SL 80F IS EQUIPPED WITH A FANUC CONTROL, 32" 4 JAW CHUCK AND AN 8.5" SPINDLE BORE.
SPECIFICATIONS:
SWING OVER BED 51.2"
MAX. LONGITUDINAL TRAVEL 43.3"
MAX. CROSS TRAVEL 16.5"
HOLE THRU CHUCK 12.5"
HOLE THRU SPINDLE 8.5"
HOLE THRU REAR CHUCK FLANGE 8.25"
SPINDLE NOSE A2-15
TURRET POSITIONS 6 SIDED
APPROXIMATE WEIGHT 38,000 LBS
MORI SEIKI MSG 501
32" 4 JAW MANUAL CHUCK
THIS MORI SEIKI SL 80F IS EQUIPPED WITH A FANUC CONTROL, 32" 4 JAW CHUCK AND AN 8.5" SPINDLE BORE.
Imperial
| Max. Swing | 51.2" |
| Max Turning Diameter | 51.2" |
| Spindle Bore/Max Bar Capacity | 8.5 |
| Z Travel | 43.3" |
| X Travel | 16.5" |
| Chuck Size | 32" |
| Chuck Type | Manual |
| Spindle Motor | 50 hp |
| Spindle Speeds (RPM) | 550 |
| Spindle Bore/Bar Capacity | 8.5 in |
| Max. Bar Capacity | 8.5" |
| Tailstock | No |
| Rear Chuck Prep | Yes |
| Rear Chuck | Yes |
| Rear Chuck Diameter | 25" |
| Rear Chuck Type | Manual |
| Control | CNC (MORI SEIKI MSG 501) |
SPECIFICATIONS:
SWING OVER BED 51.2"
MAX. LONGITUDINAL TRAVEL 43.3"
MAX. CROSS TRAVEL 16.5"
HOLE THRU CHUCK 12.5"
HOLE THRU SPINDLE 8.5"
HOLE THRU REAR CHUCK FLANGE 8.25"
SPINDLE NOSE A2-15
TURRET POSITIONS 6 SIDED
APPROXIMATE WEIGHT 38,000 LBS
MORI SEIKI MSG 501
32" 4 JAW MANUAL CHUCK
