MORI SEIKI SL 400BMC
Have one to sell?
ConditionUsed
1 available

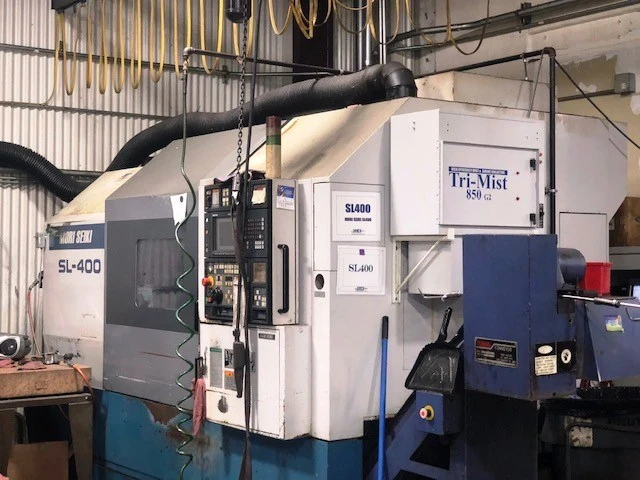

THIS MORI SEIKI SL 400BMC MULTI AXIS LATHE HAS A MSC 518 CONTROL, A 15" CHUCK, MAX BAR CAPACITY OF 5.11", 40" CENTERS AND A 12 LIVE STATION TURRET.
SPECIFICATIONS:
MAX TURNING DIAMETER 25.4"
MAX TURNING LENGTH 33.9"
MAX BAR CAPACITY 5.11"
SWING OVER BED 36.8"
DISTANCE BETWEEN CENTERS 40.0"
X AXIS TRAVEL 11.3"
Z AXIS TRAVEL 36.0"
C AXIS 0.01 DEGREES
RAPID TRAVERSE X AXIS 710 IPM
RAPID TRAVERSE Z AXIS 710 IPM
SPINDLE NOSE A2-11
SPINDLE BORE 5.2"
SPINDLE SPEED 10 ¨C 2400 RPM
SPINDLE MOTOR 40 HP
TURRET CAPACITY 12 LIVE STATIONS
TURRET INDEX TIME 1 SECOND
TAILSTOCK TAPER MT-4
TAILSTOCK BODY TRAVEL 24.0
POWER 45 KVA, 220V / 3-PHASE
OVERALL DIMENSIONS 230" X 102" X 104"
WEIGHT 25,000 LBS
MORI SEIKI MSC-518 (FANUC) CONTROL
15" HYDRAULIC CHUCK
MILLING
MIST COLLECTOR
CHIP CONVEYOR
12 LIVE TOOLHOLDERS - WILL CONFIRM
THIS MORI SEIKI SL 400BMC MULTI AXIS LATHE HAS A MSC 518 CONTROL, A 15" CHUCK, MAX BAR CAPACITY OF 5.11", 40" CENTERS AND A 12 LIVE STATION TURRET.
Imperial
| Maximum Swing | 36.8" |
| Max Turning Diameter | 25.4" |
| Main Spindle Bore/Max Bar Capacity | 5.2/ 4.5 |
| Tail Stock/Sub Spindle | Tail Stock |
| Distance Between Centers | 40" |
| Maximum Cutting Length | 33.9" |
| Distance Between Spindles | 40" |
| X-Axis Travel (X1, X2, X3) | 11.3 |
| Z-Axis Travel (Z1, Z2, Z3) | 36 |
| C-Axis Indexing (1, 2) | .001 |
| Main Spindle Chuck Size | 15" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 5.2" |
| Main Spindle Maximum Bar Work | 4.5" |
| Main Spindle Speed | 2,400 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40 |
| Turret Tool Positions 1, 2 | 12 |
| Chip Conveyor | Yes |
| (HQR) Standard Chuck Dia. Main Spindle (L) | 15" |
| Control | CNC (MORI SEIKI MSC-518) |
| Dimensions | 230" X 102" X 104" |
| Weight | 25,000 LBS |
SPECIFICATIONS:
MAX TURNING DIAMETER 25.4"
MAX TURNING LENGTH 33.9"
MAX BAR CAPACITY 5.11"
SWING OVER BED 36.8"
DISTANCE BETWEEN CENTERS 40.0"
X AXIS TRAVEL 11.3"
Z AXIS TRAVEL 36.0"
C AXIS 0.01 DEGREES
RAPID TRAVERSE X AXIS 710 IPM
RAPID TRAVERSE Z AXIS 710 IPM
SPINDLE NOSE A2-11
SPINDLE BORE 5.2"
SPINDLE SPEED 10 ¨C 2400 RPM
SPINDLE MOTOR 40 HP
TURRET CAPACITY 12 LIVE STATIONS
TURRET INDEX TIME 1 SECOND
TAILSTOCK TAPER MT-4
TAILSTOCK BODY TRAVEL 24.0
POWER 45 KVA, 220V / 3-PHASE
OVERALL DIMENSIONS 230" X 102" X 104"
WEIGHT 25,000 LBS
MORI SEIKI MSC-518 (FANUC) CONTROL
15" HYDRAULIC CHUCK
MILLING
MIST COLLECTOR
CHIP CONVEYOR
12 LIVE TOOLHOLDERS - WILL CONFIRM
