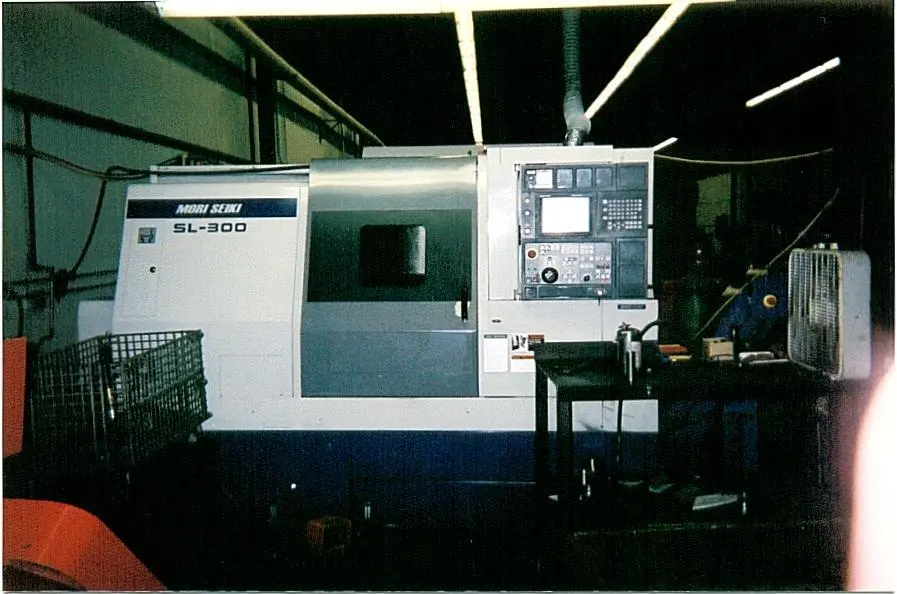

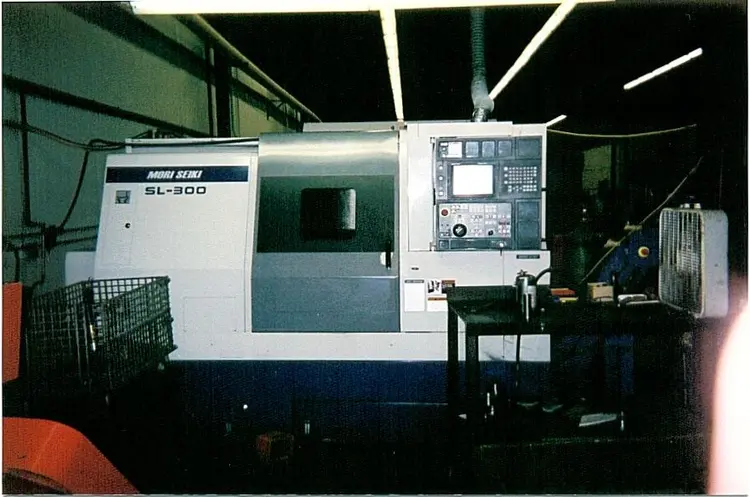

MORI SEIKI SL 300A/700

SPECIFICATIONS:
SWING OVER BED 28.1"
SWING OVER CARRIAGE 19.7"
MAX. TURNING DIAMETER 16.5"
SPINDLE NOSE A2-8"
HOLE THROUGH SPINDLE 3.3"
BAR WORK 2.9"
SPINDLE SPEEDS 35 - 3500 RPM
MAX WORK LENGTH 27.2"
X AXIS TRAVEL 9.8"
Z AXIS TRAVEL 31.5"
TAILSTOCK QUILL DIAMETER 4.3"
QUILL TAPER MT #5
QUILL STROKE/TAILSTOCK STROKE 5.9"
TAILSTOCK TRAVEL 22.4"
TURRET TOOL POSITION 12
MAIN MOTOR 25 HP AC
MACHINE WEIGHT 14,300 LBS.
