MORI SEIKI TL 40B/2000 CNC LATHE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
MORI SEIKI
Model:
TL 40B/2000
Year:
1996
Stock #:
3059
Status:
For Sale
Serial #:
2094

Description

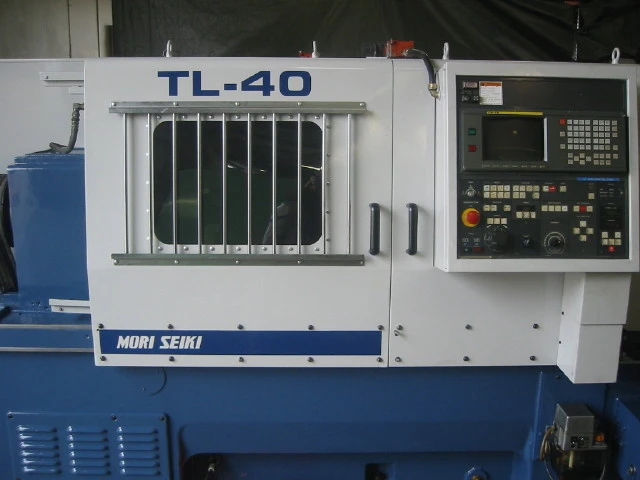

THIS MORI SEIKI TL 40B HAS 80" CENTERS, A FANUC CONTROL, 12" CHUCK AND A 10 POSITION TURRET WITH TAILSTOCK AND 2000 RPM SPINDLE WITH 3.5" BAR CAPACITY.

Max. Swing24.4"619.76 mm
Max Turning Diameter17.3"439.42 mm
Spindle Bore/Max Bar Capacity4.1/ 3.54.1/ 3.5
Z Travel76.8"1,950.7 mm
X Travel9.4"238.76 mm
Machining Length75"1,905 mm
Distance Between Centers83.383.3
Chuck Size12"304.8 mm
Chuck TypeHydraullicHydraullic
Spindle Motor30 hp
Spindle Speeds (RPM)20002000
Spindle Bore4.1 in
Max. Bar Capacity3.5"88.9 mm
Turret Tool Positions1010
TailstockYesYes
Chip ConveyorYesYes
ControlCNC (FANUC 16T)CNC (FANUC 16T)

SPECIFICATIONS:
MAX. SWING                                  24.4"
MAX. TURNING DIA.                           17.3"
MAX. TURNING LENGTH                         75"
DISTANCE BETWEEN CENTERS                    83.3"
SPINDLE SPEEDS                              20-2000 RPM
SPINDL BORE                                 4.1"
BAR CAPACITY                                3.5"
SPINDLE NOSE                                A2-8
TURRET CONFIGURATION                        10 STATION
X - AXIS                                    9.4"
Z - AXIS                                    76.8"
RAPID TRAVERSE
X - AXIS                                    236.2 IPM
Z - AXIS                                    472 IPM
TAIL STOCK DIA.                             5.9"
TAIL STOCK STROKE                           3.9"
TAIL STOCK TRAVEL                           115.4"
MAIN MOTOR                                  30 HP

FANUC 16T CONTROL
12" CHUCK
CHIP CONVEYOR
ALL AVAILABLE TOOLING
ALL AVAILABLE MANUALS
