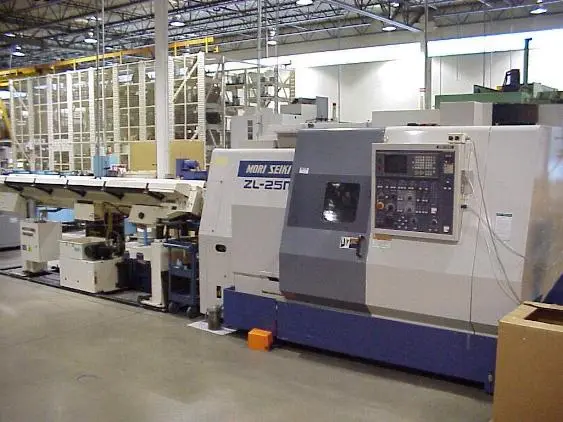

MORI SEIKI ZL 25BMC/500 4-AXIS CNC LATHE WITH MILLING
Have one to sell?
ConditionUsed
1 available
THIS MORI SEIKI ZL 25BMC/500 4-AXIS CNC LATHE WITH MILLING HAS A 10" CHUCK, 3 ROTARY HEADS AND AN IEMCA BAR FEED. THE ZL IS EQUIPPED WITH A FANUC CONTROL.
SPECIFICATIONS:
SWING OVER BED 20.5"
SWING OVER CROSS SLIDE 13.8"
BETWEEN CENTERS 25.4"
SPINDLE NOSE A2-6"
BORE DIAMETER 3.1"
RANGE OF SPINDLE SPEED 35-3500 RPM
C-AXIS .001
LONGITUDINAL TRAVEL
(Z-AXIS) UPPER TURRET 23.2"
(Z-AXIS) LOWER TURRET 23.2"
CROSS-SLIDE TRAVEL
(X-AXIS) UPPER TURRET 11.3"
(X-AXIS) LOWER TURRET 5.7"
RAPID TRAVERSE SPEED
(Z-AXIS) 472.4 IPM
(X-AXIS) 590.6 IPM
(C-AXIS)
UPPER TURRET (6-ROTARY) AUTO VERT. V12
LOWER TURRET AUTO VERT. V8
MAIN SPINDLE DRIVE MOTOR 30 HP AC
ROTARY TOOL SPEED 80-2000 RPM
ROTARY HORSE POWER 5 HP
TAILSTOCK TRAVEL 23.2"
TAILSTOCK SPINDLE 4.3"
TAILSTOCK SPINDLE TRAVEL 3.9"
WEIGHT 16,840 LBS.
FANUC 16TT CNC CONTROL
PROGRAMMABLE NC TAILSTOCK
10" 3-JAW HYDRAULIC CHUCK (PB QUICK CHANGE CHUCK)
3 ROTARY HEADS
ALL AVAILABLE TOOOLING
IEMCA TAL 65 MAGAZINE BARFEED
FACTORY BARFEED INTERFACE
FACTORY AUTO PARTS CATCHER
TWIN TOOL PRE SETTER
CHIP CONVEYOR
ALL MANUALS
THIS MORI SEIKI ZL 25BMC/500 4-AXIS CNC LATHE WITH MILLING HAS A 10" CHUCK, 3 ROTARY HEADS AND AN IEMCA BAR FEED. THE ZL IS EQUIPPED WITH A FANUC CONTROL.
Imperial
| Maximum Swing | 20.5" |
| Max Turning Diameter | 13.8" |
| Main Spindle Bore/Max Bar Capacity | 3.1/ 2.75 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 13.8" |
| Distance Between Centers | 25.4" |
| X-Axis Travel (X1, X2, X3) | 11.3, 5.7 |
| Z-Axis Travel (Z1, Z2, Z3) | 23.2, 23.2 |
| C-Axis Indexing (1, 2) | .001 |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.1" |
| Main Spindle Maximum Bar Work | 2.75" |
| Main Spindle Speed | 3,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Number of Turrets | 2 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 2000 |
| Turret Rotary Tool Horse Power 1, 2 | 5 |
| Bar Feed | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| Number of Available Live Tool Holders | 3 |
| (HQR) Standard Chuck Dia. Main Spindle (L) | 10" |
| Control | CNC (FANUC 16TT) |
| Weight | 16,840 LBS. |
SPECIFICATIONS:
SWING OVER BED 20.5"
SWING OVER CROSS SLIDE 13.8"
BETWEEN CENTERS 25.4"
SPINDLE NOSE A2-6"
BORE DIAMETER 3.1"
RANGE OF SPINDLE SPEED 35-3500 RPM
C-AXIS .001
LONGITUDINAL TRAVEL
(Z-AXIS) UPPER TURRET 23.2"
(Z-AXIS) LOWER TURRET 23.2"
CROSS-SLIDE TRAVEL
(X-AXIS) UPPER TURRET 11.3"
(X-AXIS) LOWER TURRET 5.7"
RAPID TRAVERSE SPEED
(Z-AXIS) 472.4 IPM
(X-AXIS) 590.6 IPM
(C-AXIS)
UPPER TURRET (6-ROTARY) AUTO VERT. V12
LOWER TURRET AUTO VERT. V8
MAIN SPINDLE DRIVE MOTOR 30 HP AC
ROTARY TOOL SPEED 80-2000 RPM
ROTARY HORSE POWER 5 HP
TAILSTOCK TRAVEL 23.2"
TAILSTOCK SPINDLE 4.3"
TAILSTOCK SPINDLE TRAVEL 3.9"
WEIGHT 16,840 LBS.
FANUC 16TT CNC CONTROL
PROGRAMMABLE NC TAILSTOCK
10" 3-JAW HYDRAULIC CHUCK (PB QUICK CHANGE CHUCK)
3 ROTARY HEADS
ALL AVAILABLE TOOOLING
IEMCA TAL 65 MAGAZINE BARFEED
FACTORY BARFEED INTERFACE
FACTORY AUTO PARTS CATCHER
TWIN TOOL PRE SETTER
CHIP CONVEYOR
ALL MANUALS
