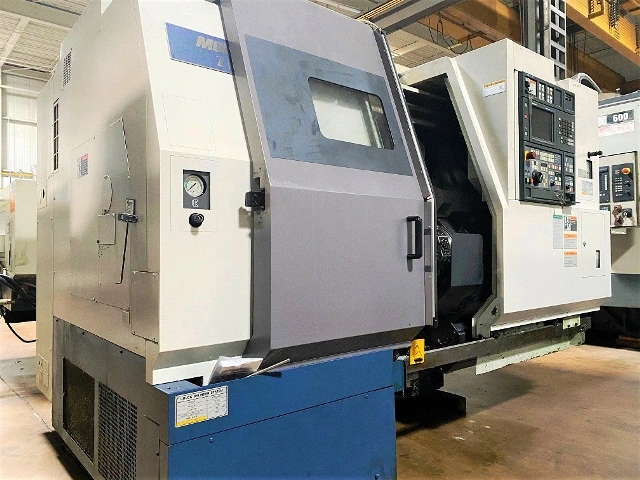

MORI SEIKI MODEL ZL-150SMC TWIN TURRET, SUB-SPINDLE LIVE CNC LATHE
Have one to sell?
ConditionUsed
1 available
THIS TWIN TURRET MORI SEIKI ZL-150SMC HAS A SUBSPINDLE AND 8 POSITION LOWER TURRET, 3 JAW CHUCK ON THE MAIN SPINDLE, COLLET ON THE SUB AND LNS BAR FEEDER.
SPECIFICATIONS:
SWING OVER BED: 20.1"
MAX. SWING OVER CROSS SLIDE: 20.08"
SPINDLE BORE: 2.2/1.69"
DISTANCE BETWEEN SPINDLES: 29.72"
MAXIMUM TURNING LENGTH: 41.1"
SPINDLE SPEEDS: 50-5000 RPM
X1/X2 AXIS TRAVEL: 9.25"/6.89"
Z1 & Z2-AXIS TRAVELS: 21.46"/19.29".
UPPER TURET: 12 (ALL LIVE STATIONS)
LOWER TURRET: 8 POSITIONS
FANUC MSC-501TA CNC
LNS SERVO QUICK LOAD S2 BAR FEED
3 JAW CHUCK ON MAIN
COLLET CHUCK ON SUB SPINDLE
CHIP CONVEYOR
MISC. LIVE TOOLING WITH (2) BACK DRILLING TOOLS
THIS TWIN TURRET MORI SEIKI ZL-150SMC HAS A SUBSPINDLE AND 8 POSITION LOWER TURRET, 3 JAW CHUCK ON THE MAIN SPINDLE, COLLET ON THE SUB AND LNS BAR FEEDER.
Imperial
| Maximum Swing | 20.1" |
| Max Turning Diameter | 20.08" |
| Main Spindle Bore/Max Bar Capacity | 2.2/ 1.69 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Swing Over Cross Slide | 20.08" |
| Distance Between Spindles | 29.72" |
| X-Axis Travel (X1, X2, X3) | 9.25"/ 6.89" |
| Z-Axis Travel (Z1, Z2, Z3) | 21.46"/ 19.29" |
| Main Spindle Chuck Size | 6" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.2" |
| Main Spindle Maximum Bar Work | 1.69" |
| Main Spindle Speed | 5,000 RPM |
| Sub Spindle/2nd Spindle Chuck Type | Collet |
| Turret Tool Positions 1, 2 | 12 |
| Bar Feed | Yes |
| Chip Conveyor | Yes |
| Control | CNC (FANUC MSC-501TA) |
SPECIFICATIONS:
SWING OVER BED: 20.1"
MAX. SWING OVER CROSS SLIDE: 20.08"
SPINDLE BORE: 2.2/1.69"
DISTANCE BETWEEN SPINDLES: 29.72"
MAXIMUM TURNING LENGTH: 41.1"
SPINDLE SPEEDS: 50-5000 RPM
X1/X2 AXIS TRAVEL: 9.25"/6.89"
Z1 & Z2-AXIS TRAVELS: 21.46"/19.29".
UPPER TURET: 12 (ALL LIVE STATIONS)
LOWER TURRET: 8 POSITIONS
FANUC MSC-501TA CNC
LNS SERVO QUICK LOAD S2 BAR FEED
3 JAW CHUCK ON MAIN
COLLET CHUCK ON SUB SPINDLE
CHIP CONVEYOR
MISC. LIVE TOOLING WITH (2) BACK DRILLING TOOLS
