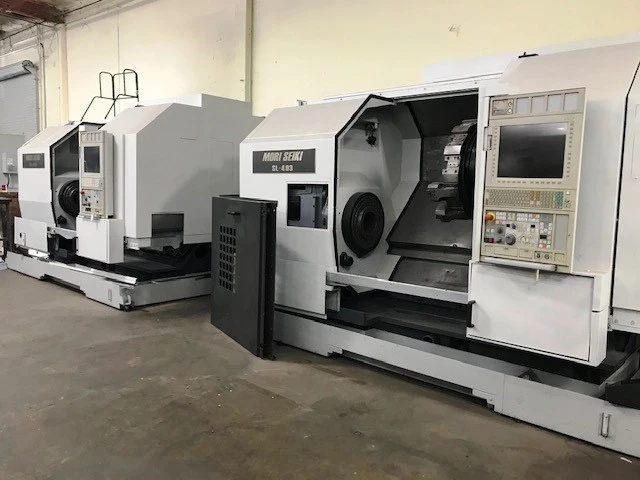

MORI SEIKI SL 403C/ 800
Have one to sell?
ConditionUsed
1 available
THIS 2011 MORI SEIKI SL 403C/ 800 IS EQUIPPED WITH THE MSX 500IV CONTROL, 15" CHUCK (NOT PICTURED) AND A 6.7" SPINDLE BORE.
SPECIFICATIONS:
CHUCK SIZE 15”
DISTANCE BETWEEN CENTERS 44.2”
SWING OVER BED 27.9”
MAX TURNING DIAMETER 24.4”
TRAVEL X / Z 13.5” / 39.1”
MAX SPINDLE SPEED 1,300 RPM
SPINDLE NOSE A2-15
NO. POSITIONS ON TURRET 12
SPINDLE THROUGH HOLE 6.7”
RAPID TRAVERSE RATE X=787.4” / Z=944.8” IPM
FLOOR SPACE 142.9” X 90.7”
MACHINE WEIGHT 24,200 LBS
MSX-500IV (FANUC) CONTROL
15" CHUCK (NOT PICTURED)
CHIP CONVEYOR
STANDARD STATIC TOOLING PACKAGE
ALL AVAILABLE MANUALS
THIS 2011 MORI SEIKI SL 403C/ 800 IS EQUIPPED WITH THE MSX 500IV CONTROL, 15" CHUCK (NOT PICTURED) AND A 6.7" SPINDLE BORE.
Imperial
| Max. Swing | 36" |
| Max Turning Diameter | 24.4" |
| Spindle Bore/Max Bar Capacity | 6.7 |
| Z Travel | 39.1" |
| X Travel | 13.5" |
| Machining Length | 37" |
| Chuck Size | 15" |
| Chuck Type | Manual |
| Spindle Speeds (RPM) | 1300 |
| Spindle Bore/Bar Capacity | 6.7 in |
| Turret Tool Positions | 12 |
| Tailstock | YES |
| Chip Conveyor | Yes |
| Control | CNC (MSX-500IV) |
| Dimensions | 142.9” X 90.7” |
| Weight | 24,200 LBS |
SPECIFICATIONS:
CHUCK SIZE 15”
DISTANCE BETWEEN CENTERS 44.2”
SWING OVER BED 27.9”
MAX TURNING DIAMETER 24.4”
TRAVEL X / Z 13.5” / 39.1”
MAX SPINDLE SPEED 1,300 RPM
SPINDLE NOSE A2-15
NO. POSITIONS ON TURRET 12
SPINDLE THROUGH HOLE 6.7”
RAPID TRAVERSE RATE X=787.4” / Z=944.8” IPM
FLOOR SPACE 142.9” X 90.7”
MACHINE WEIGHT 24,200 LBS
MSX-500IV (FANUC) CONTROL
15" CHUCK (NOT PICTURED)
CHIP CONVEYOR
STANDARD STATIC TOOLING PACKAGE
ALL AVAILABLE MANUALS
