MORI SEIKI SL 600BMC/ 1000
Have one to sell?
ConditionUsed
1 available

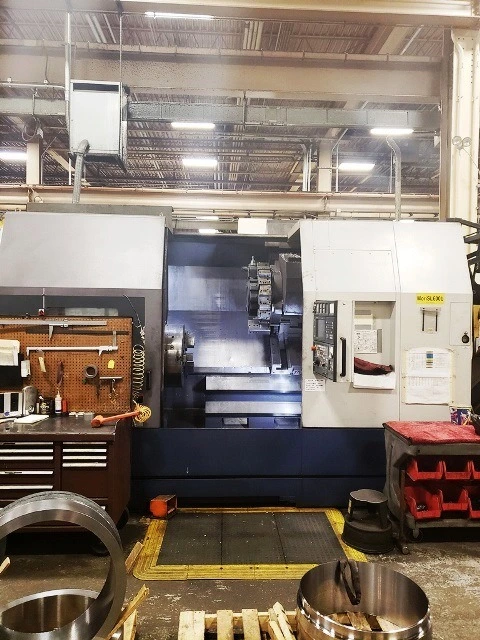

WELL MAINTAINED MORI SEIKI SL 600BMC/ 1000 COMES WITH A 24" 3 JAW SMW AUTOBLOK CHUCK WITH A 6.5" BAR CAPACITY AND 50" CENTERS. IT'S EQUIPPED WITH A MORI MSC-501 CONTROL AND TAILSTOCK.
MORI SEIKI SL-600BMC/1000
NEW 1999
SPECIFICATIONS
MAX. SWING OVER BED 40.55"
MAX. SWING OVER CROSSLIDE 28.85"
MAX. TURNING DIAMETER 35.43"
DISTANCE BETWEEN CENTERS 51.18"
MAX. MACHINING LENGTH 39.37"
SPINDLE BORE DIA. 7.2/6.5"
SPINDLE NOSE A2-20
SPINDLE MOTOR 50 HP
SPINDLE SPEEDS 45-700 RPM
NUMBER OF TURRET POSITIONS 10
X - AXIS TRAVEL 19.09"
Z - AXIS TRAVEL 45.28"
TAILSTOCK QUILL DIAMETER 5.90"
TAILSTOCK QUILL STROKE 5.91"
TAILSTOCK TRAVEL 43.31"
TAILSTOCK TAPER MT5
MACHINE WEIGHT 33,000 LBS
EQUIPPED WITH
MORI MSC-501 (FANUC 21T)
CHIP CONVEYOR
24" 3-JAW SMW AUTOBLOC CHUCK
LIVE TOOLING
WELL MAINTAINED MORI SEIKI SL 600BMC/ 1000 COMES WITH A 24" 3 JAW SMW AUTOBLOK CHUCK WITH A 6.5" BAR CAPACITY AND 50" CENTERS. IT'S EQUIPPED WITH A MORI MSC-501 CONTROL AND TAILSTOCK.
Imperial
| Maximum Swing | 40.55" |
| Max Turning Diameter | 35.43" |
| Main Spindle Bore/Max Bar Capacity | 7.2/ 6.5" |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 28.85" |
| Maximum Cutting Length | 39.37" |
| Distance Between Spindles | 51.18" |
| X-Axis Travel (X1, X2, X3) | 19.09 |
| Z-Axis Travel (Z1, Z2, Z3) | 45.28 |
| C-Axis Indexing (1, 2) | .001 |
| Main Spindle Chuck Size | 24" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 7.2" |
| Main Spindle Maximum Bar Work | 6.5" |
| Main Spindle Speed | 700 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 50 |
| Turret Tool Positions 1, 2 | 10 |
| Chip Conveyor | Yes |
| (HQR) Standard Chuck Dia. Main Spindle (L) | 24" |
| Control | CNC (MORI MSC-501) |
| Weight | 33,000 LBS |
MORI SEIKI SL-600BMC/1000
NEW 1999
SPECIFICATIONS
MAX. SWING OVER BED 40.55"
MAX. SWING OVER CROSSLIDE 28.85"
MAX. TURNING DIAMETER 35.43"
DISTANCE BETWEEN CENTERS 51.18"
MAX. MACHINING LENGTH 39.37"
SPINDLE BORE DIA. 7.2/6.5"
SPINDLE NOSE A2-20
SPINDLE MOTOR 50 HP
SPINDLE SPEEDS 45-700 RPM
NUMBER OF TURRET POSITIONS 10
X - AXIS TRAVEL 19.09"
Z - AXIS TRAVEL 45.28"
TAILSTOCK QUILL DIAMETER 5.90"
TAILSTOCK QUILL STROKE 5.91"
TAILSTOCK TRAVEL 43.31"
TAILSTOCK TAPER MT5
MACHINE WEIGHT 33,000 LBS
EQUIPPED WITH
MORI MSC-501 (FANUC 21T)
CHIP CONVEYOR
24" 3-JAW SMW AUTOBLOC CHUCK
LIVE TOOLING
