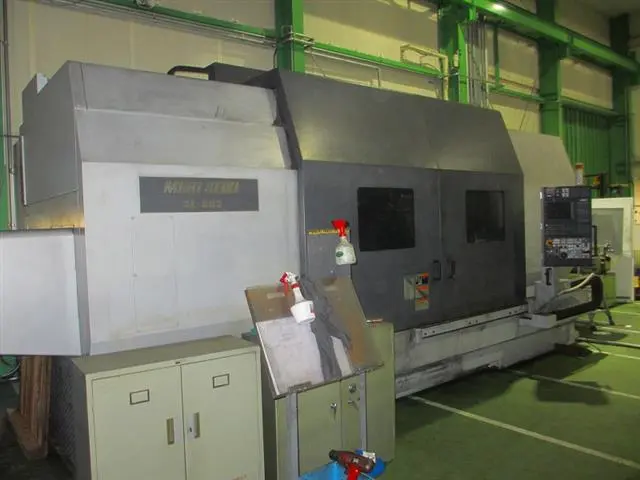

MORI SEIKI SL 603C/2000

SPECIFICATIONS:
MAX. SWING                   39.1"
SWING OVER CROSS SLIDE       28.9"
MAX. MACHINING DIAMETER      35.4"
MAX. MACHINING LENGTH        78.7"
DISTANCE BETWEEN CENTERS     90.6"
SPINDLE BORE DIA.            10.2"
CHUCK SIZE                   21"
SPINDLE NOSE                 A1-20"
SPINDLE SPEEDS               1500 RPM
NUMBER OF TURRET POSITION    10
X - AXIS TRAVEL              19.1"
Z - AXIS TRAVEL              84.6"
RAPID TRAVERSE               787 IPM
TAILSTOCK QUILL DIAMETER     5.9"
TAILSTOCK QUILL STROKE       5.9"
TAILSTOCK TRAVEL             82.7"
MAIN MOTOR                   60 HP AC
DIMENSIONS                   275 X 135 X 114
WEIGHT                       40,700
