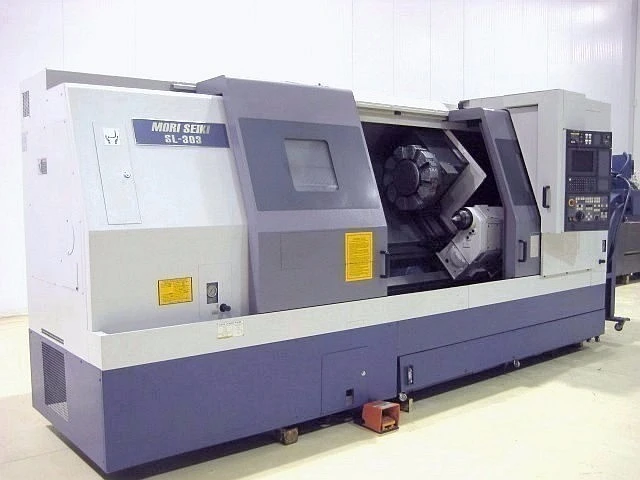

MORI SEIKI SL-303B/1500 CNC LATHE
Have one to sell?
ConditionUsed
1 available
THIS MORI SEIKI SL-303B/1500 TURNING CENTER BOASTS 60" CENTERS AND A 15" HYDRAULIC CHUCK WITH 3.5" BAR CAPACITY AND IS EQUIPPED WITH A MORI SEIKI MSC 501 CONTROL AND TAILSTOCK.
SPECIFICATIONS:
SWING OVER BED 28.1"
SWING OVER FRONT COVER 22.4"
SWING OVER CROSS SLIDE 19.7"
MAXIMUM TURNING DIAMETER 16.5"
MAXIMUM TURNING LENGTH 61.4"
X AXIS TRAVEL 10"
Z AXIS TRAVEL 65"
RAPID TRAVERSE RATE X AXIS 591 IPM
RAPID TRAVERSE RATE Z AXIS 787 IPM
SPINDLE NOSE A2-8
SPINDLE BORE, DIA. 4.1"
MAXIMUM BAR CAPACITY 3.5"
SPINDLE SPEEDS 25 - 2500 RPM
SPINDLE MOTOR 30 HP
TURRET CAPACITY 10 STATION TURRET
TAILSTOCK QUILL TAPER MT #5
TAILSTOCK QUILL DIAMETER 3.3"
TAILSTOCK QUILL STROKE 5.1"
TAILSTOCK BODY TRAVEL 55.1"
DIMENSIONS, APPROX. 183" x 83" x 84"
WEIGHT, APPROX. 19,800 LBS
MORI SEIKI MSC-501 (FANUC) CNC CTRL WITH 10.4" LCD
RS-232C PORT INTERFACE FOR DNC OPERATION,
15" 3-JAW HYDRAULIC THROUGH HOLE CHUCK
TOOL PRESETTER/EYE (TYPE IN-MACHINE)
TAILSTOCK
STANDARD COOLANT SYSTEM WITH TANK & PUMP
RIGHT HAND DISCHARGE TURBO CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
