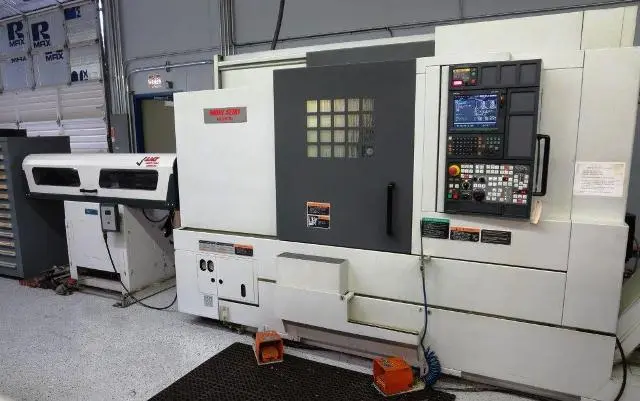

MORI SEIKI NL 2500SY MULTI AXIS LATHE
Have one to sell?
ConditionUsed
1 available
THIS MORI SEIKI NL 2500SY (2008) HAS 10" & 6" CHUCKS AND ATS S26 & 16C COLLETS AS WELL, MORI MSX-850III CONTROL, FULL C AXIS INDEXING AND LNS QUICK LOAD BARFEEDER.
SPECIFICATIONS:
SWING OVER BED 36.4
SWING OVER CROSS SLIDE 29.7"
MAX CUTTING DIAMETER 14.4
DISTANCE BETWEEN SPINDLES 29
CHUCK SIZE MAIN / SUB SPINDLE 10 / 6
X, Y & Z TRAVEL 10.2 / 3.9" / 31"
MAX BAR CAPACITY 3.06
MAX MACHINING LENGTH 27.7
MAIN SPINDLE SPEED 4,000 RPM
SUB SPINDLE SPEED 6,000 RPM
MAIN SPINDLE NOSE / BORE A2-8 / 3.15
MAIN SPINDLE MOTOR / SUB 25 HP / 15 HP
SPINDLE INDEXING FULL C
TURRET POSITIONS 12
LIVE TOOL SPINDLE MOTOR 7.5HP
LIVE TOOL RPM 6,000
RAPID TRAVERSE RATES X / Z 1,181 IPM
ELECTRICS 208 / 3 / 60
APPROX. DIMS (not including bar feed) 122 x 80 x 84
APPROXIMATE WEIGHT 13,600 LBS.
MORI MSX-850III CNC CONTROL
10" 3 JAW CHUCK & 6" 3 JAW CHUCK
FULL C AXIS ON BOTH SPINDLES
ATS COLLET CHUCKS: S26 & 16C
12 STATION TURRET / ALL LIVE STATIONS
RIGID TAPPING ON BOTH SPINDLES / LIVE TOOLING
LIVE HOLDERS INCLUDED - SEE DETAILS BELOW
Y AXIS TRAVERSE
LNS QUICK LOAD SERVO 80 BAR FEED W/ EXTRA LINERS
CHIP CONVEYOR
AUTO TOOL SETTERS ON MAIN & SUB
TOOLING PACKAGE INCLUDED
ALL AVAILABLE MANUALS
THIS MORI SEIKI NL 2500SY (2008) HAS 10" & 6" CHUCKS AND ATS S26 & 16C COLLETS AS WELL, MORI MSX-850III CONTROL, FULL C AXIS INDEXING AND LNS QUICK LOAD BARFEEDER.
Imperial
| Maximum Swing | 36.4" |
| Max Turning Diameter | 14.4" |
| Main Spindle Bore/Max Bar Capacity | 3.46/ 3.06 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Swing Over Cross Slide | 29.7" |
| Maximum Cutting Length | 27.7" |
| Distance Between Spindles | 29" |
| X-Axis Travel (X1, X2, X3) | 10.2 |
| Z-Axis Travel (Z1, Z2, Z3) | 31 |
| Y-Axis Travel (Y1, Y2, Y3) | 3.9 |
| C-Axis Indexing (1, 2) | FULL C |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.46" |
| Main Spindle Maximum Bar Work | 3.06" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 25 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 2 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 15 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 7.0 |
| Bar Feed | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| Control | CNC (MORI MSX-850III) |
| Dimensions | 122” x 80” x 84” |
| Weight | 13,600 LBS |
SPECIFICATIONS:
SWING OVER BED 36.4
SWING OVER CROSS SLIDE 29.7"
MAX CUTTING DIAMETER 14.4
DISTANCE BETWEEN SPINDLES 29
CHUCK SIZE MAIN / SUB SPINDLE 10 / 6
X, Y & Z TRAVEL 10.2 / 3.9" / 31"
MAX BAR CAPACITY 3.06
MAX MACHINING LENGTH 27.7
MAIN SPINDLE SPEED 4,000 RPM
SUB SPINDLE SPEED 6,000 RPM
MAIN SPINDLE NOSE / BORE A2-8 / 3.15
MAIN SPINDLE MOTOR / SUB 25 HP / 15 HP
SPINDLE INDEXING FULL C
TURRET POSITIONS 12
LIVE TOOL SPINDLE MOTOR 7.5HP
LIVE TOOL RPM 6,000
RAPID TRAVERSE RATES X / Z 1,181 IPM
ELECTRICS 208 / 3 / 60
APPROX. DIMS (not including bar feed) 122 x 80 x 84
APPROXIMATE WEIGHT 13,600 LBS.
MORI MSX-850III CNC CONTROL
10" 3 JAW CHUCK & 6" 3 JAW CHUCK
FULL C AXIS ON BOTH SPINDLES
ATS COLLET CHUCKS: S26 & 16C
12 STATION TURRET / ALL LIVE STATIONS
RIGID TAPPING ON BOTH SPINDLES / LIVE TOOLING
LIVE HOLDERS INCLUDED - SEE DETAILS BELOW
Y AXIS TRAVERSE
LNS QUICK LOAD SERVO 80 BAR FEED W/ EXTRA LINERS
CHIP CONVEYOR
AUTO TOOL SETTERS ON MAIN & SUB
TOOLING PACKAGE INCLUDED
ALL AVAILABLE MANUALS
