MORI SEIKI SL 65C CNC LATHE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
MORI SEIKI
Model:
SL 65C
Year:
1998
Stock #:
102
Status:
For Sale

Description

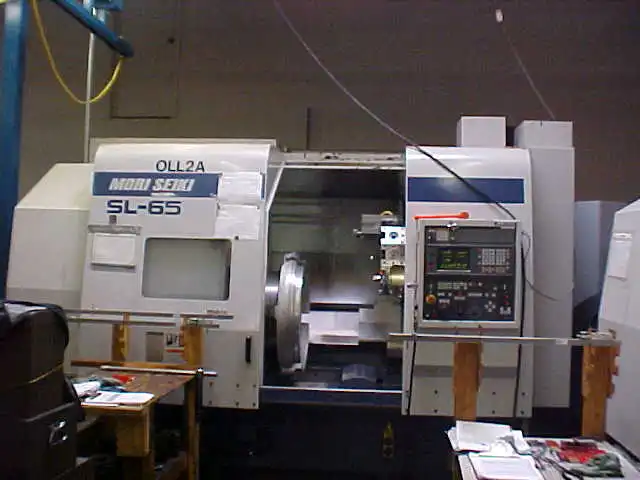

PERFECT FOR OIL FIELD WORK THIS MORI SEIKI SL-65C CNC TURNING CENTER HAS FANUC CONTROL, 24" 3 JAW MANUAL CHUCK AND 10.2" SPINDLE BORE.

Max. Swing42.6"1,082 mm
Max Turning Diameter26.8"680.72 mm
Spindle Bore/Max Bar Capacity10.210.2
Z Travel30.3"769.62 mm
X Travel13.8"350.52 mm
Machining Length27.6"701.04 mm
Chuck Size24"609.6 mm
Chuck TypeManualManual
Spindle Motor50 hp
Spindle Speeds (RPM)660660
Spindle Bore10.2 in
Max. Bar Capacity10.2"259.08 mm
Turret Tool Positions1212
TailstockNoNo
Chip ConveyorYesYes
ControlCNC (FANUC 18T)CNC (FANUC 18T)

SPECIFICATIONS:
MAXIMUM SWING 42.6"
MAXIMUM SWING OVER CARRIAGE 26.8"
MAXIMUM SWING OVER FRONT COVER 31.5"
MAXIMUM TURNING LENGTH 27.6"
SPINDLE BORE DIA. 10.2"
SPINDLE NOSE A1-20
SPINDLE SPEEDS 7-660 RPM
TURRET CONFIGURATION 12 STATION TURRET
X - AXIS TRAVEL 13.8"
Z - AXIS TRAVEL 30.3"
MAIN MOTOR 50 HP AC

FANUC 18T CONTROL CNC CONTROL WITH COLOR GRAPHICS
24" 3-JAW MANUAL CHUCK
CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
