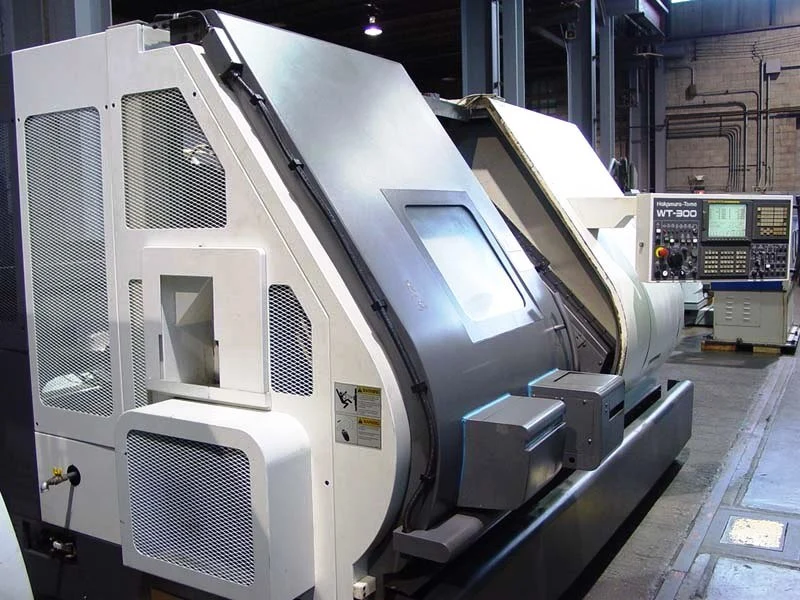

NAKAMURA TOME WT-300MMSY 8-AXIS CNC TURNING/MILL CENTER
Have one to sell?
ConditionUsed
1 available
THIS NAKAMURA TOME WT-300MMSY 8-AXIS CNC TURNING/MILL CENTER HAS AN UPPER & LOWER TURRET WITH 12 POSITIONS ON BOTH, Y AXIS ON UPPER TURRET, MAIN AND SUB AND C-AXIS ON BOTH SPINDLES AND LNS BAR FEEDER.
SPECIFICATIONS:
BAR-CAPACITY 2.55"
MAX SWING OVER SLANT BED 12.2"
MAX TURNING CAPACITY 10.6"
MAX MACHINABLE CENTER 30.7"
CROSS TRAVEL (X-AXIS) UPPER TURRET 7.6"
LOWER TURRET 7.6"
LONGITUDINAL TRAVEL (Z-AXIS) UPPER TURRET 30.7"
LOWER TURRET 30.77"
Y-AXIS TRAVEL UPPER TURRET 2.36"
B-AXIS SUB-SPINDLE SLIDE 33.46"
C-AXIS ON BOTH SPINDLES .001 DEGREE
TOOL POSITIONS
(12 ON EACH TURRET) 24 TOTAL
SPINDLE BORE 3.1"
SPINDLE NOSE A2-6
SPINDLE SPEED RANGE 50-4500 RPM
SPINDLE HORSEPOWER 20 HP
LIVE TOOLING SPEED RANGE 90-4000 RPM
LIVE TOOLING HORSEPOWER 5 HP
MACHINE DIMS (L,W,H) 166" X 100" X 89"
MACHINE WEIGHT 28,000 LBS
FANUC 18iTB CNC CONTROL
UPPER AND LOWER TURRETS
LIVE TOOLING IN BOTH TURRETS
Y-AXIS ON UPPER TURRET
MAIN SPINDLE AND SUB-SPINDLE,
C-AXIS ON BOTH SPINDLES
LNS S3 BAR-FEEDER
PARTS CATCHER
CHIP CONVEYOR AND COOLANT SYSTEM
TOOLING PACKAGE INCLUDING 3 LIVE TOOLS AND 11 STATIC HOLDERS.
THIS NAKAMURA TOME WT-300MMSY 8-AXIS CNC TURNING/MILL CENTER HAS AN UPPER & LOWER TURRET WITH 12 POSITIONS ON BOTH, Y AXIS ON UPPER TURRET, MAIN AND SUB AND C-AXIS ON BOTH SPINDLES AND LNS BAR FEEDER.
Imperial
| Maximum Swing | 12.2" |
| Max Turning Diameter | 10.6" |
| Main Spindle Bore/Max Bar Capacity | 3.1/ 2.5 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Cutting Length | 30.7" |
| X-Axis Travel (X1, X2, X3) | 7.6", 7.6" |
| Z-Axis Travel (Z1, Z2, Z3) | 30.7", 30.77" |
| Y-Axis Travel (Y1, Y2, Y3) | 2.36" |
| C-Axis Indexing (1, 2) | .001, .001 |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.1" |
| Main Spindle Maximum Bar Work | 2.5" |
| Main Spindle Speed | 4,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 20 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Bore Size | 3.1 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 4,500 RPM |
| Number of Turrets | 2 |
| Turret Tool Positions 1, 2 | 24 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4000 |
| Turret Rotary Tool Horse Power 1, 2 | 20 |
| B-Axis Travel | 33.46 |
| B Axis Rotary Tool Spindle Speed | 4000 rpm |
| B-Axis Rotary Tool Spindle Horsepower | 5 hp |
| Bar Feed | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Number of Available Live Tool Holders | 3 |
| Control | CNC (FANUC 18iTB) |
| Dimensions | 166" X 100" X 89" |
| Weight | 28,000 LBS |
SPECIFICATIONS:
BAR-CAPACITY 2.55"
MAX SWING OVER SLANT BED 12.2"
MAX TURNING CAPACITY 10.6"
MAX MACHINABLE CENTER 30.7"
CROSS TRAVEL (X-AXIS) UPPER TURRET 7.6"
LOWER TURRET 7.6"
LONGITUDINAL TRAVEL (Z-AXIS) UPPER TURRET 30.7"
LOWER TURRET 30.77"
Y-AXIS TRAVEL UPPER TURRET 2.36"
B-AXIS SUB-SPINDLE SLIDE 33.46"
C-AXIS ON BOTH SPINDLES .001 DEGREE
TOOL POSITIONS
(12 ON EACH TURRET) 24 TOTAL
SPINDLE BORE 3.1"
SPINDLE NOSE A2-6
SPINDLE SPEED RANGE 50-4500 RPM
SPINDLE HORSEPOWER 20 HP
LIVE TOOLING SPEED RANGE 90-4000 RPM
LIVE TOOLING HORSEPOWER 5 HP
MACHINE DIMS (L,W,H) 166" X 100" X 89"
MACHINE WEIGHT 28,000 LBS
FANUC 18iTB CNC CONTROL
UPPER AND LOWER TURRETS
LIVE TOOLING IN BOTH TURRETS
Y-AXIS ON UPPER TURRET
MAIN SPINDLE AND SUB-SPINDLE,
C-AXIS ON BOTH SPINDLES
LNS S3 BAR-FEEDER
PARTS CATCHER
CHIP CONVEYOR AND COOLANT SYSTEM
TOOLING PACKAGE INCLUDING 3 LIVE TOOLS AND 11 STATIC HOLDERS.
