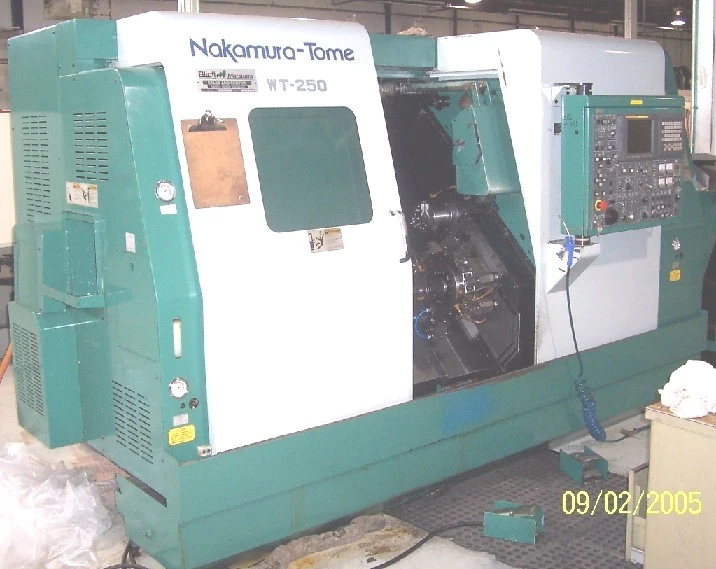

NAKAMURA-TOME WT-250 LATHES, CNC, 4-AXIS, W/MILLING & SUB-SPINDLE
Have one to sell?
ConditionUsed
1 available
THE MULTI-AXIS NAKAMURA-TOME WT-250 CNC LATHE W/MILLING & SUB-SPINDLE COMES EQUIPPED WITH AN ATS COLLET CHUCK ON MAIN SPINDLE & 8" 3 JAW ON SUB AND (2) 12 POSITION TURRETS.
SPECIFICATIONS:
CAPACITY: SWING / SWING OVER CROSS SLIDE 11.2" / 9.84"
MAXIMUM CUTTING DIAMETER (TURRET ONE & TURRET TWO) 9.84"
MAXIMUM TURNING LENGTH 21.85"
MAIN SPINDLE: SPEEDS 40 - 4,500 RPM
SPINDLE BORE / BAR CAP / SPINDLE NOSE 3.15" / 2.5" / A2-6
MOTOR (30 MIN. / CONT.) 26 / 20 HP
SUB-SPINDLE: SPEEDS 40 - 4,500 RPM
SPINDLE BORE / BAR CAP / SPINDLE NOSE / INDEXING 2.48" / 2" / A2-5
MOTOR (30 MIN. / CONT.) 15 / 10 HP
TURRETS: NUMBER OF POSITIONS (TURRET ONE / TURRET TWO) ALL LIVE 12 / 12 TOOLS EACH
TRAVELS: X-AXIS TRAVEL (TURRET ONE & TURRET TWO) 2.5"
Z-AXIS TRAVEL (TURRET ONE & TURRET TWO) 7.67"
B-AXIS TRAVEL (SUB-SPINDLE) 20"
ROTARY TOOLS: ROTARY TOOL SPEED 100 - 6,000 RPM
ROTARY TOOL MOTOR (30 MIN. / CONT. TURRET ONE & TURRET TWO) 5 / 3 HP
RAPIDS: RAPID TRAVERSE (X & Z / Y) 945 / 236 IPM
SUB SPINDLE RAPID TRAVERSE 945 IPM
DIMENSIONS: FLOOR SPACE (L X W X H) 135" X 82" X 81"
WEIGHT (APPROX) 15,253 LBS
FANUC 18IT CONTROL
ATS COLLET CHUCK MAIN SPINDLE, 8" 3-JAW SUB SPINDLE
CHIP CONVEYOR
FLOOD COOLANT SYSTEM
MISCELLANEOUS TOOLING
ALL AVAILABLE MANUALS
THE MULTI-AXIS NAKAMURA-TOME WT-250 CNC LATHE W/MILLING & SUB-SPINDLE COMES EQUIPPED WITH AN ATS COLLET CHUCK ON MAIN SPINDLE & 8" 3 JAW ON SUB AND (2) 12 POSITION TURRETS.
Imperial
| Maximum Swing | 11.2" |
| Max Turning Diameter | 9.84" |
| Main Spindle Bore/Max Bar Capacity | 2.99/ 2.56 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Swing Over Cross Slide | 9.84" |
| X-Axis Travel (X1, X2, X3) | 2.5", 2.5" |
| Z-Axis Travel (Z1, Z2, Z3) | 7.67", 7.67" |
| Main Spindle Bore Diameter | 2.99" |
| Main Spindle Maximum Bar Work | 2.56" |
| Main Spindle Speed | 4,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 26 |
| Sub Spindle/2nd Spindle Bore Size | Inches |
| Sub Spindle/2nd Spindle Speed | 4,500 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 15 |
| Number of Turrets | 2 |
| Turret Tool Positions 1, 2 | 24 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 5 |
| B-Axis Travel | 20 |
| Chip Conveyor | Yes |
| (HQR) Standard Chuck Dia. Second Spindle (R) | 8" |
| Control | CNC (FANUC18iT) |
| Dimensions | 135" X 82" X 81" |
| Weight | 15,253 LBS |
SPECIFICATIONS:
CAPACITY: SWING / SWING OVER CROSS SLIDE 11.2" / 9.84"
MAXIMUM CUTTING DIAMETER (TURRET ONE & TURRET TWO) 9.84"
MAXIMUM TURNING LENGTH 21.85"
MAIN SPINDLE: SPEEDS 40 - 4,500 RPM
SPINDLE BORE / BAR CAP / SPINDLE NOSE 3.15" / 2.5" / A2-6
MOTOR (30 MIN. / CONT.) 26 / 20 HP
SUB-SPINDLE: SPEEDS 40 - 4,500 RPM
SPINDLE BORE / BAR CAP / SPINDLE NOSE / INDEXING 2.48" / 2" / A2-5
MOTOR (30 MIN. / CONT.) 15 / 10 HP
TURRETS: NUMBER OF POSITIONS (TURRET ONE / TURRET TWO) ALL LIVE 12 / 12 TOOLS EACH
TRAVELS: X-AXIS TRAVEL (TURRET ONE & TURRET TWO) 2.5"
Z-AXIS TRAVEL (TURRET ONE & TURRET TWO) 7.67"
B-AXIS TRAVEL (SUB-SPINDLE) 20"
ROTARY TOOLS: ROTARY TOOL SPEED 100 - 6,000 RPM
ROTARY TOOL MOTOR (30 MIN. / CONT. TURRET ONE & TURRET TWO) 5 / 3 HP
RAPIDS: RAPID TRAVERSE (X & Z / Y) 945 / 236 IPM
SUB SPINDLE RAPID TRAVERSE 945 IPM
DIMENSIONS: FLOOR SPACE (L X W X H) 135" X 82" X 81"
WEIGHT (APPROX) 15,253 LBS
FANUC 18IT CONTROL
ATS COLLET CHUCK MAIN SPINDLE, 8" 3-JAW SUB SPINDLE
CHIP CONVEYOR
FLOOD COOLANT SYSTEM
MISCELLANEOUS TOOLING
ALL AVAILABLE MANUALS
