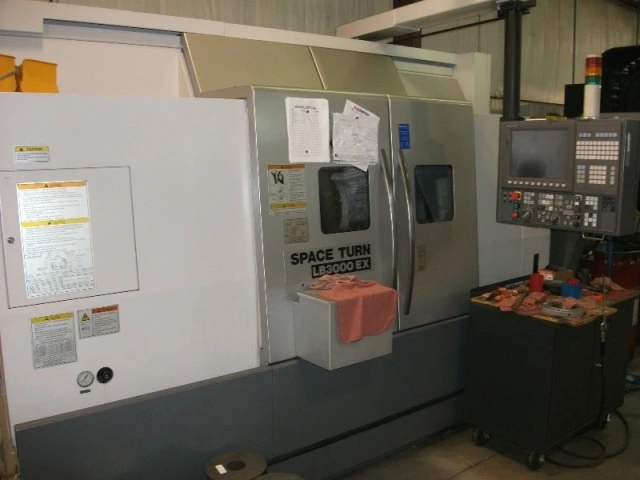

OKUMA LB 3000 EXBB-MY/ 1000 MULTI AXIS LATHE
Have one to sell?
ConditionUsed
1 available
THE OKUMA LB 3000 EXBB-MY/ 1000 COMES WITH A 12" & 10" KITAGAWA CHUCKS AND ATS COLLET CHUCK A8 S30H PULLBACK, PARTS CATCHER AND TAILSTOCK.
SPECIFICATIONS:
SWING OVER BED 22.83
SWING OVER BED / COVER 18.5
SADDLE
MAX MACHINING DIAMETER 13.39
MAX MACHINING LENGTH 39.37
X AXIS 11.81
Z AXIS 41.93
Y AXIS 4.72 (+2.76 / -1.97)
TAILSTOCK 39.96
W AXIS 35.24
BIG BORE SPINDLE
SPINDLE NOSE JIS A2-8
SPINDLE SPEED RANGE 42-4,200 RPM
NUMBER OF RANGES 2 SPEED BY WINDING
SPINDLE BORE I.D.** 3.58
SPINDLE BEARING INNER DIAMETER. 5.51
SPINDLE I.D. TAPER 2 DEG
SPINDLE WEIGHT WITHOUT TAILSTOCK 705 LBS
SPINDLE WEIGHT WITH TAILSTOCK 550 LBS.
MAIN SPINDLE MOTOR BIG BORE
MAIN SPINDLE MOTOR POWER 20 MIN./ CONT. MINUTE RATING 40/30 HP
MAIN SPINDLE MAX MOTOR TORQUE 20 MIN/CONT. RATING 514/378 LBF-FT.
REVISED APPARENT POWER WITH A2-8 SUPER BIG BORE SPINDLE 36.4 KVA
TURRET TYPE V12
INDEXING TIME 0.15
LIVE TOOL SPINDLE SPEEDS 45~6,000
RAPID TRAVERSE X-Z-Y (984 1,181 492
LIVE TOOL SPINDLE (MIN / CONT) 9.6 / 5.5
OKUMA OSP CONTROL
CYLINDER AND DRAW TUBE
BIG BORE A2-8
LIVE QUILL TAILSTOCK
PARTS CATCHER PREP ONLY
TOUCHSETTER M
HIGH PRESSURE COOLANT 0.8KW
CON.HINGE W/ OTANK
KITAGAWA 10" - 3 JAW HYDRAULIC CHUCK
ALBERTI LIVE TOOL PACKAGE (2 RADIAL & 2 AXIAL)
ATS COLLET CHUCK A8 S30H PULLBACK
KITAGAWA 12" CHUCK FOR LB3000EX A2-8
OKUMA PARTS CATCHER
THE OKUMA LB 3000 EXBB-MY/ 1000 COMES WITH A 12" & 10" KITAGAWA CHUCKS AND ATS COLLET CHUCK A8 S30H PULLBACK, PARTS CATCHER AND TAILSTOCK.
Imperial
| Maximum Swing | 22.83" |
| Max Turning Diameter | 13.39" |
| Main Spindle Bore/Max Bar Capacity | 3.58/3.0 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 18.5" |
| Maximum Cutting Length | 39.37" |
| X-Axis Travel (X1, X2, X3) | 11.81 |
| Z-Axis Travel (Z1, Z2, Z3) | 41.93 |
| Y-Axis Travel (Y1, Y2, Y3) | 4.72 (+2.76 / -1.97) |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.58" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,200 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40/ 30 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 9.65 |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| (HQR) Standard Chuck Dia. Main Spindle (L) | 12" |
| Control | CNC (OKUMA OSP) |
SPECIFICATIONS:
SWING OVER BED 22.83
SWING OVER BED / COVER 18.5
SADDLE
MAX MACHINING DIAMETER 13.39
MAX MACHINING LENGTH 39.37
X AXIS 11.81
Z AXIS 41.93
Y AXIS 4.72 (+2.76 / -1.97)
TAILSTOCK 39.96
W AXIS 35.24
BIG BORE SPINDLE
SPINDLE NOSE JIS A2-8
SPINDLE SPEED RANGE 42-4,200 RPM
NUMBER OF RANGES 2 SPEED BY WINDING
SPINDLE BORE I.D.** 3.58
SPINDLE BEARING INNER DIAMETER. 5.51
SPINDLE I.D. TAPER 2 DEG
SPINDLE WEIGHT WITHOUT TAILSTOCK 705 LBS
SPINDLE WEIGHT WITH TAILSTOCK 550 LBS.
MAIN SPINDLE MOTOR BIG BORE
MAIN SPINDLE MOTOR POWER 20 MIN./ CONT. MINUTE RATING 40/30 HP
MAIN SPINDLE MAX MOTOR TORQUE 20 MIN/CONT. RATING 514/378 LBF-FT.
REVISED APPARENT POWER WITH A2-8 SUPER BIG BORE SPINDLE 36.4 KVA
TURRET TYPE V12
INDEXING TIME 0.15
LIVE TOOL SPINDLE SPEEDS 45~6,000
RAPID TRAVERSE X-Z-Y (984 1,181 492
LIVE TOOL SPINDLE (MIN / CONT) 9.6 / 5.5
OKUMA OSP CONTROL
CYLINDER AND DRAW TUBE
BIG BORE A2-8
LIVE QUILL TAILSTOCK
PARTS CATCHER PREP ONLY
TOUCHSETTER M
HIGH PRESSURE COOLANT 0.8KW
CON.HINGE W/ OTANK
KITAGAWA 10" - 3 JAW HYDRAULIC CHUCK
ALBERTI LIVE TOOL PACKAGE (2 RADIAL & 2 AXIAL)
ATS COLLET CHUCK A8 S30H PULLBACK
KITAGAWA 12" CHUCK FOR LB3000EX A2-8
OKUMA PARTS CATCHER
