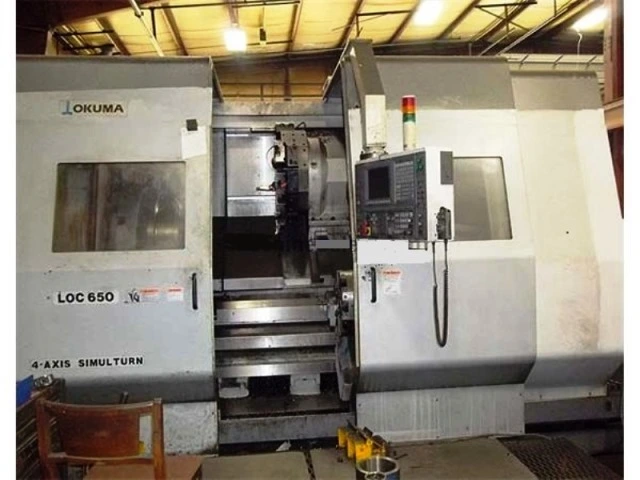

OKUMA LOC 650 BB-2SC/1750 MULTI AXIS CNC LATHE

OKUMA LOC 650 BB-2SC/1750 MULTI AXIS CNC LATHE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
OKUMA
Model:
LOC 650 BB-2SC/1750
Year:
2006
Stock #:
4481
Status:
For Sale
Serial #:
PM302266

Description

A SPINDLE BORE OF 14.75" ALONG WITH A 12 POSITION UPPER AND 8 POSITION LOWER TURRET MAKE THIS OKUMA LOC 650 BB-2SC/1750 THE PERFECT MACHINE FOR YOUR LARGE INTEGRATED PARTS. THIS BEEFY PUPPY HAS A 60HP/ 500 RPM SPINDLE AND TAILSTOCK.

Maximum Swing40.55"1,030 mm
Max Turning Diameter25.59"649.99 mm
Main Spindle Bore/Max Bar Capacity14.7514.75
Tail Stock/Sub SpindleTail StockTail Stock
Maximum Cutting Length68.9"1,750.1 mm
X-Axis Travel (X1, X2, X3)12.99″ / -5.51″, 10.04″ / -0.59″12.99″ / -5.51″, 10.04″ / -0.59″
Z-Axis Travel (Z1, Z2, Z3)80.31", 39.96"80.31", 39.96"
Main Spindle Chuck Size32"812.8 mm
Main Spindle Chuck TypeManualManual
Main Spindle Bore Diameter14.75"374.65 mm
Main Spindle Speed500 RPM500 RPM
Main Spindle Horsepower (CONT. /30 MINS)6060
Rear ChuckYesYes
Rear Chuck TypeManualManual
Number of Turrets22
Turret Type12 UPPER/ 8 LOWER12 UPPER/ 8 LOWER
Chip ConveyorYesYes
(HQR) Standard Chuck Dia. Main Spindle (L)32"812.8 mm
ControlCNC (OSP E100L)CNC (OSP E100L)

SPECIFICATIONS:
CHUCK SIZE                          32”
THRU HOLE                           14.75”
MAX WORK LENGTH UPPER               68.9”
SWING OVER BED                      40.55”
MAX TURNING DIAMETER-UPPER          25.59”
MAX TURNING DIAMETER-LOWER          20.08”
Z-AXIS TRAVEL UPPER                 80.31”
Z-AXIS TRAVEL LOWER                 39.96”
SPINDLE MOTOR                       60 HP
SPINDLE SPEEDS                      5-500 RPM
TURRET STATIONS                     12 UPPER / 8 UPPER

OSP E100L CONTROL
14.75 SPINDLE I.D.
DUAL INDEPENDENT TURRETS.
12 POSITION UPPER TURRET
8 POSITION LOWER TURRET
60 HP SPINDLE WITH
COOLANT SYSTEM
TAILSTOCK
CHIP CONVEYOR
3151 CUTTING HRS
SCHUNK ROTA TB  800-410 BIG BORE AIR CHUCK FRONT
SMW BB CHUCK ON REAR.
