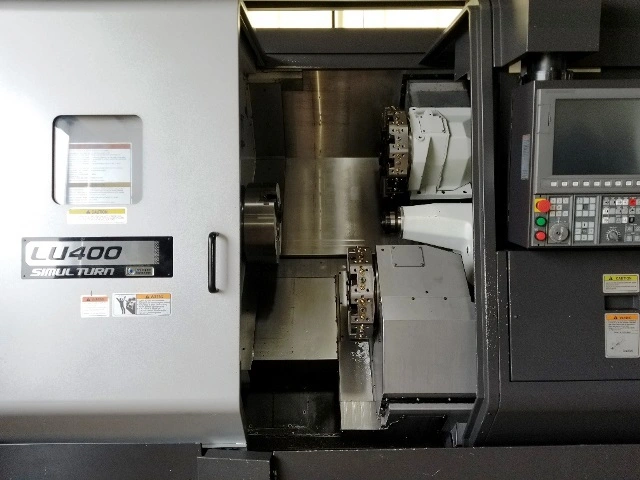

OKUMA SIMULTURN LU 4002SC CNC 4 AXIS CNC TURNING CENTER
Have one to sell?
ConditionUsed
1 available
THIS OKUMA SIMULTURN LU 4002SC CNC 4 AXIS CNC TURNING CENTER IS EQUIPPED WITH AN OKUMA OSP CONTROL, 15" 3-JAW HYDRAULIC & 15" AUTOBLOK CHUCK SYSTEMS AND UPPER & LOWER TURRETS.
SPECIFICATIONS:
SWING OVER THE BED 25.59"
SWING OVER SADDLE 16.54"
DISTANCE BETWEEN CENTERS 27"
MAXIMUM TURNING DIAMETER 16.54"
MAXIMUM TURNING LENGTH 25.59"
X - AXIS TRAVEL UPPER 11.81"
X - AXIS TRAVEL LOWER 7.68"
Z - AXIS TRAVEL UPPER 26.57"
Z - AXIS TRAVEL LOWER 26.38"
RAPID TRAVERSE RATES X, Z 787, 984 IPM
SPINDLE NOSE A2-11"
BORE DIAMETER 4.46"
SPINDLE BAR CAPACITY 4"
SPINDLE SPEEDS 3000 RPM
MACHINING SPINDLE 43/30 HP AC
UPPER TURRET POSITION 12
LOWER TURRET POSITION 10
TAILSTOCK QUILL DIAMETER 3.94"
TAILSTOCK QUILL TAPER MT #5
TAILSTOCK QUILL TRAVEL 5.91"
WEIGHT 25,060 LBS.
OSP P300LCNC CONTROL
15" 3-JAW HYDRAULIC CHUCK PACKAGE
15" AUTOBLOCK SP 3-JAW INTERCHANGEABLE AIR CHUCK SYSTEM
DUAL CHUCK CAPABILITIES
3D ANIMATION ANIMATION
CHIP CONVEYOR
CHUCK GRASP CONFIRMATION
CUSTOM-API
CYCLE TIME CHECK,
LOAD MONITOR,
ANIMATION,
3D ANIMATION
DNC-T1
EX BRAKE RELEASE EXP.
AUTO CHAMFER
HEAVY TOOLING
HELP
HI-G CONTROL
HYDRAULIC OIL COOLER
INCH/METRIC SWITCHABLE
LAP4
LOAD MONITOR (B) MACHINE PROTECTION
MAC MAN
NC TURRET
NOSE-R2B
SIMPLE TOW-ALONG TAILSTOCK
SPINDLE ORIENT
TAPE DATA IN/OUT
THREAD OVERIDE
TOOL WEAR COMPENSATION
TOOLLIFE MANAGEMENT
TOUCH SENSOR (UPPER/LOWER TURRETS)
TURRET POSITION COMP.
UPPER/LOWER TOOL PRESSETTER
USER TASK 2
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
THIS OKUMA SIMULTURN LU 4002SC CNC 4 AXIS CNC TURNING CENTER IS EQUIPPED WITH AN OKUMA OSP CONTROL, 15" 3-JAW HYDRAULIC & 15" AUTOBLOK CHUCK SYSTEMS AND UPPER & LOWER TURRETS.
Imperial
| Maximum Swing | 25.59" |
| Max Turning Diameter | 16.54" |
| Main Spindle Bore/Max Bar Capacity | 4.46/ 4.0 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 16.54" |
| Maximum Cutting Length | 25.59" |
| Distance Between Spindles | 27" |
| X-Axis Travel (X1, X2, X3) | 11.81, 7.68" |
| Z-Axis Travel (Z1, Z2, Z3) | 26.57", 26.38" |
| Main Spindle Chuck Size | 15" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 4.46" |
| Main Spindle Maximum Bar Work | 4" |
| Main Spindle Speed | 3,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 43/ 30 |
| Rear Chuck Prep | Yes |
| Rear Chuck Diameter | 15" |
| Rear Chuck Type | Air |
| ATC Magazine Capacity | 12 UPPER/ 10 LOWER |
| Number of Turrets | 2 |
| Turret Tool Positions 1, 2 | 12 |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| Tool Eye Measurement Upper Turret | Yes |
| Tool Eye Measurement Lower Turret | Yes |
| (HQR) Standard Chuck Dia. Main Spindle (L) | 15" |
| (HQR) Standard Chuck Dia. Second Spindle (R) | 15" |
| Control | CNC (OSP P300L) |
| Weight | 25,060 LBS. |
SPECIFICATIONS:
SWING OVER THE BED 25.59"
SWING OVER SADDLE 16.54"
DISTANCE BETWEEN CENTERS 27"
MAXIMUM TURNING DIAMETER 16.54"
MAXIMUM TURNING LENGTH 25.59"
X - AXIS TRAVEL UPPER 11.81"
X - AXIS TRAVEL LOWER 7.68"
Z - AXIS TRAVEL UPPER 26.57"
Z - AXIS TRAVEL LOWER 26.38"
RAPID TRAVERSE RATES X, Z 787, 984 IPM
SPINDLE NOSE A2-11"
BORE DIAMETER 4.46"
SPINDLE BAR CAPACITY 4"
SPINDLE SPEEDS 3000 RPM
MACHINING SPINDLE 43/30 HP AC
UPPER TURRET POSITION 12
LOWER TURRET POSITION 10
TAILSTOCK QUILL DIAMETER 3.94"
TAILSTOCK QUILL TAPER MT #5
TAILSTOCK QUILL TRAVEL 5.91"
WEIGHT 25,060 LBS.
OSP P300LCNC CONTROL
15" 3-JAW HYDRAULIC CHUCK PACKAGE
15" AUTOBLOCK SP 3-JAW INTERCHANGEABLE AIR CHUCK SYSTEM
DUAL CHUCK CAPABILITIES
3D ANIMATION ANIMATION
CHIP CONVEYOR
CHUCK GRASP CONFIRMATION
CUSTOM-API
CYCLE TIME CHECK,
LOAD MONITOR,
ANIMATION,
3D ANIMATION
DNC-T1
EX BRAKE RELEASE EXP.
AUTO CHAMFER
HEAVY TOOLING
HELP
HI-G CONTROL
HYDRAULIC OIL COOLER
INCH/METRIC SWITCHABLE
LAP4
LOAD MONITOR (B) MACHINE PROTECTION
MAC MAN
NC TURRET
NOSE-R2B
SIMPLE TOW-ALONG TAILSTOCK
SPINDLE ORIENT
TAPE DATA IN/OUT
THREAD OVERIDE
TOOL WEAR COMPENSATION
TOOLLIFE MANAGEMENT
TOUCH SENSOR (UPPER/LOWER TURRETS)
TURRET POSITION COMP.
UPPER/LOWER TOOL PRESSETTER
USER TASK 2
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
