OKUMA LU 45SBB/ 2000
Have one to sell?
ConditionUsed
1 available

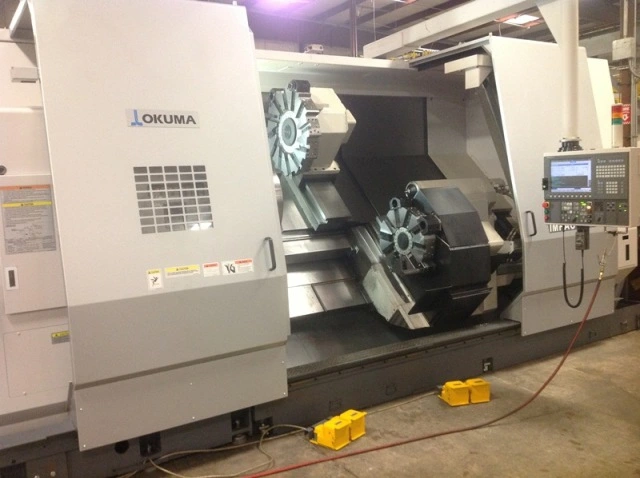

IF YOU'RE NEEDING A 10" BORE LOOK NO FURTHER THAN THIS 2012 OKUMA LU 45SBB/2000 - SUPER BIG BORE 10.2" LATHE. THE LU 45SSB HAS AN UPPER & LOWER TURRET, A TOW ALONG TAILSTOCK, OSP-THINC CONTROL WITH IGF AND 25" SCHUNK CHUCK.
SPECIFICATIONS:
MAXIMUM SWING: 35.590"
SWING OVER BED 29.13"
SWING OVERR SADDLE 21.85"
DISTANCE BETWEEN CENTERS 78.74"
MAXIMUM TURNING LENGTHS: 78.74"
MAX TURNING DIAMETER 25.59"
CHUCK DIAMETER: 25.000"
NOSE: A2-20
SUPER BIG BORE 10.2"
SPINDLE SPEED: 31-900 RPM
DRIVE MOTOR HP: 60/50
QUILL DIAMETER: 5.120"
QUILL STROKE: 6.690"
QUILL CENTER: MT #5
PRIMARY: UPPER TURRET 12
SECOND: LOWER TURRET 10
TOOL SHANK SIZE:
SQUARE
PRIMARY: 1.250"
SECOND: 1.250"
ROUND
PRIMARY: 2.500"
SECOND: 2.500"
MACHINE NET WEIGHT: 28,600LBS
OSP-THINC CONTROL WITH IGF
SUPER BIG BORE A2-20
AUTO TOW ALONG TAILSTOCK
PREP F/SMW BBN600-275ES
TRANSFORMER 50/60 HZ MULTITAP
PORTABLE PULSE HANDLE
RAPID TRAVERSE OVERIDE SWITCH
ONE TOUCH IGF 2SC/W
EXISTING SHUNK 25" AIR CHUCK
CONVEYOR SIDE LONG BED
STANDARD TOOL PKG
HIGH PRESSURE COOLANT
ALL AVILABLE MANUELS
IF YOU'RE NEEDING A 10" BORE LOOK NO FURTHER THAN THIS 2012 OKUMA LU 45SBB/2000 - SUPER BIG BORE 10.2" LATHE. THE LU 45SSB HAS AN UPPER & LOWER TURRET, A TOW ALONG TAILSTOCK, OSP-THINC CONTROL WITH IGF AND 25" SCHUNK CHUCK.
Imperial
| Maximum Swing | 35.59" |
| Max Turning Diameter | 21.85" |
| Main Spindle Bore/Max Bar Capacity | 10.2 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 21.85" |
| Distance Between Spindles | 78.74" |
| X-Axis Travel (X1, X2, X3) | 17.32″/ 12″ |
| Z-Axis Travel (Z1, Z2, Z3) | 82.28″/ 79.72″ |
| Main Spindle Chuck Size | 25" |
| Main Spindle Chuck Type | Air |
| Main Spindle Bore Diameter | 10.2" |
| Main Spindle Speed | 900 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 60/ 50 |
| ATC Magazine Capacity | 12 UPPER/ 10 LOWER |
| Number of Turrets | 2 |
| Turret Tool Positions 1, 2 | 12 |
| Chip Conveyor | Yes |
| Chip Conveyor | Side |
| Multi Tap Transformer | Yes |
| (HQR) Standard Chuck Dia. Main Spindle (L) | 25" |
| Control | CNC (OSP-THINC WITH IGF) |
| Weight | 28,600 LBS |
SPECIFICATIONS:
MAXIMUM SWING: 35.590"
SWING OVER BED 29.13"
SWING OVERR SADDLE 21.85"
DISTANCE BETWEEN CENTERS 78.74"
MAXIMUM TURNING LENGTHS: 78.74"
MAX TURNING DIAMETER 25.59"
CHUCK DIAMETER: 25.000"
NOSE: A2-20
SUPER BIG BORE 10.2"
SPINDLE SPEED: 31-900 RPM
DRIVE MOTOR HP: 60/50
QUILL DIAMETER: 5.120"
QUILL STROKE: 6.690"
QUILL CENTER: MT #5
PRIMARY: UPPER TURRET 12
SECOND: LOWER TURRET 10
TOOL SHANK SIZE:
SQUARE
PRIMARY: 1.250"
SECOND: 1.250"
ROUND
PRIMARY: 2.500"
SECOND: 2.500"
MACHINE NET WEIGHT: 28,600LBS
OSP-THINC CONTROL WITH IGF
SUPER BIG BORE A2-20
AUTO TOW ALONG TAILSTOCK
PREP F/SMW BBN600-275ES
TRANSFORMER 50/60 HZ MULTITAP
PORTABLE PULSE HANDLE
RAPID TRAVERSE OVERIDE SWITCH
ONE TOUCH IGF 2SC/W
EXISTING SHUNK 25" AIR CHUCK
CONVEYOR SIDE LONG BED
STANDARD TOOL PKG
HIGH PRESSURE COOLANT
ALL AVILABLE MANUELS
