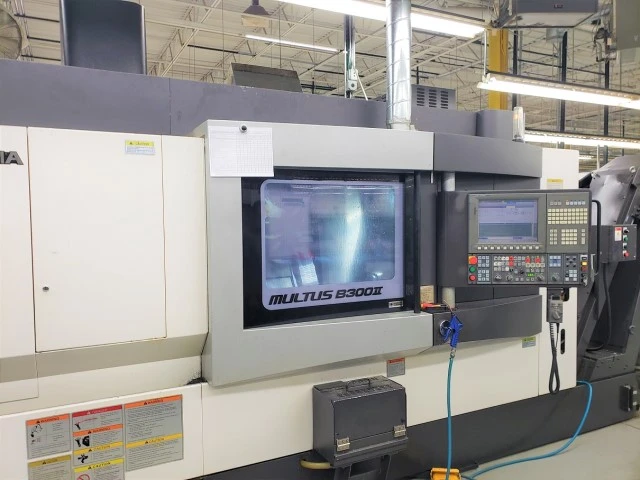

OKUMA MULTUS B300II/900W

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
OKUMA
Model:
MULTUS B300W-II/900
Year:
2013
Stock #:
5598
Status:
For Sale

Description

THIS OKUMA MODEL MULTUS B300II/900W CNC MULTI-TASKING TURNING CENTER HAS A 120 STATION ATC, BAR FEEDER, OKUMA OSP CONTROL AND A 5000 RPM SPINDLE.

Maximum Swing24.8"629.92 mm
Max Turning Diameter24.8"629.92 mm
Main Spindle Bore/Max Bar Capacity2.44/ 2.02.44/ 2.0
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Cutting Length35.43"899.92 mm
X-Axis Travel (X1, X2, X3)22.8422.84
Z-Axis Travel (Z1, Z2, Z3)36.836.8
Y-Axis Travel (Y1, Y2, Y3)+3.15 TO -3.15"+3.15 TO -3.15"
C-Axis Indexing (1, 2).001.001
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.44"61.976 mm
Main Spindle Maximum Bar Work2"50.8 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)20/ 1520/ 15
Sub Spindle/2nd Spindle Chuck Size66
Sub Spindle/2nd Spindle Bore Size2.072.07
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed3,800 RPM3,800 RPM
ATC Magazine Capacity120120
Turret Tool Positions 1, 288
B-Axis Travel-30 TO 195 DEGREE-30 TO 195 DEGREE
B-Axis Head Indexing0°0.001 deg
B-Axis Milling Spindle Speed6,000 RPM6000 rpm
B-Axis Milling Spindle Horse Power1515
B Axis Rotary Tool Spindle Speed6,000 RPM6000 rpm
Bar FeedYesYes
Chip ConveyorYesYes
High Pressure Coolant System (PSI)10001000
ControlCNC (OSP P300S)CNC (OSP P300S)
Weight22,000 LBS22,000 LBS

SPECIFICATIONS:
SWING OVER SADDLE                       24.8", Y=0
MAXIMUM MACHINING DIAMETER              24.8"
DISTANCE BETWEEN CENTERS                35.43"
TRAVELS:X-AXIS                          +22.05" TO -0.79"
Z-AXIS                                  36.8"
Y-AXIS                                  +3.15 TO -3.15"
C-AXIS CONTROL                          360 DEGREE 0.001
B-AXIS INDEXING ANGLE                   -30 TO 195 DEGREE. 0.001
SPINDLE SPEED                           45 TO 5,000 RPM
SPINDLE NOSE JIS                        A2-6
TURRET                                  H1 ATC
MILLING TOOL SPINDLE SPEED              50 TO 6,000 RPM
TOOL SHANK                              HSK-A63
NO. OF TOOLS                            120
MAIN SPINDLE                            20/15 HP
MILLING TOOL SPINDLE                    15/10 HP
WEIGHT, APPROX.                         22,000 LBS.

OSP P300S CNC
MP SYSTEMS 1000 PSI HIGH PRESSURE COOLANT
BAR FEED
120 POSITION TOOLCHANGER
CHIP CONVEYOR
