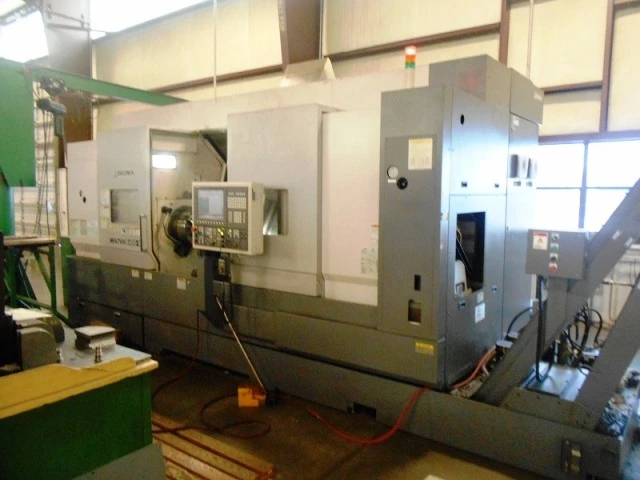

OKUMA MULTUS Big Bore B400W 2 SPINDLE

SPECIFICATIONS:
MAX SWING OVER SADDLE                 27.95"
MAX MACHINING DIAMETER                27.95"
MAX WORKING DISTANCE BETWEEN SPINDLES 61.02"
CROSS TRAVEL (X-AXIS)                 27.17"
LONGITUDINAL TRAVEL (Z-AXIS)          60.83"
Y-AXIS TRAVEL                         9.02"
B-AXIS UNIVERSAL TILTING HEAD         225 DEGREE
W-AXIS SUB-SPINDLE SLIDE              60.54"
C-AXIS ON BOTH SPINDLES               .001 DEGREE
TOOL POSITIONS                        80 TOTAL CAPTO
BIG BORE SPINDLE BORE - BOTH SPINDLE  4.3"
SPINDLE NOSE                          A2-11
SPINDLE SPEED RANGE                   3800 RPM
OPPOSED SPINDLE RANGE                 5000 RPM
SPINDLE HORSEPOWER BOTH SPINDLE       40 HP EACH
LIVE TOOLING SPEED RANGE              10,000RPM
LIVE TOOLING HORSEPOWER               15 HP
APPROXIMATE MACHINE DIMENSION         193" X 101"
APPROXIMATE MACHINE HEIGHT            119"
APPROXIMATE MACHINE WEIGHT            31,000 LBS
