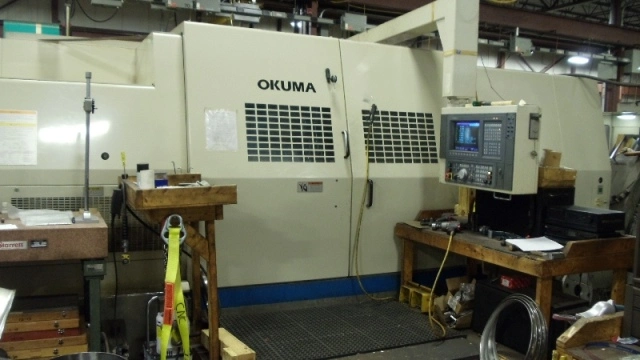

OKUMA LB 45-II CNC LATHE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
OKUMA
Model:
LB 45-II
Year:
2000
Stock #:
3601
Status:
For Sale

Description

THIS OKUMA LB 45-II HAS 80" CENTERS, AN 18" KITAGAWA CHUCK WITH A 4.33" SPINDLE BORE AND SPEEDS OF 2800 RPM'S.

Max. Swing33.77"857.76 mm
Max Turning Diameter25.98"659.89 mm
Spindle Bore/Max Bar Capacity4.33/ 4.04.33/ 4.0
Z Travel83"2,108.2 mm
X Travel17.34"440.44 mm
Chuck Size18"457.2 mm
Spindle Motor40 hp
Spindle Speeds (RPM)28002800
Spindle Bore4.33 in
Max. Bar Capacity4"101.6 mm
Turret Tool Positions1212
TailstockYESYES
Chip ConveyorYesYes
ControlCNC (OKUMA OSP 7000L)CNC (OKUMA OSP 7000L)
Dimensions114" X 167" x 118"114" X 167" x 118"
Weight36,000 LBS36,000 LBS

SPECIFICATIONS:
MAX SWING OVER BED                 33.77"
MAXIMUM TURNING DIAMETER           25.98"
MAXIMUM TURNING LENGTH             39.34"
CHUCK SIZE                         18"
CROSS TRAVEL (X-AXIS)              17.34"
LONGITUDINAL TRAVEL (Z-AXIS)       83"
TOOL POSITIONS                     12 TOTAL
SPINDLE BORE                       4.33"
SPINDLE NOSE                       A2-11
SPINDLE SPEED RANGE                12-2800 RPM
SPINDLE HORSEPOWER                 40 HP
APPROXIMATE MACHINE DIMENSIONS     114" X 167"
APPROXIMATE MACHINE HEIGHT         118"
APPROXIMATE MACHINE WEIGHT         36,000 LBS

OKUMA OSP 7000L CONTROL
83" CENTERS
18" KITAGAWA CHUCK
DRAW TUBE
CHIP CONVEYOR
ALL AVAILABLE TOOLING
ALL AVAILABLE MANUALS
