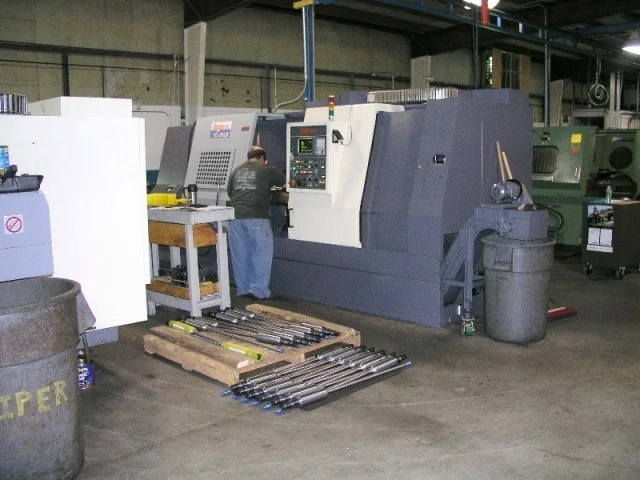

SOGOTEC TC 35LB CNC "BOX WAY" LATHE

SPECIFICATIONS:
SWING OVER BED                         26.5"
SWING OVER CROSS SLIDE                 16.5"
MAX. MACHINING DIAMETER                21.7"
DISTANCE BETWEEN CENTERS               64.6"
MAX. MACHINING LENGTH                  60.2"
SPINDLE BORE DIA.                      4.7"
FRONT BEARING INNER DIAMETER           7.1"
CHUCK SIZE                             18"
SPINDLE NOSE                           A2-11
SPINDLE SPEEDS                         3-1650 RPM
NUMBER OF GEAR RANGES                  2
NUMBER OF TURRET POSITION              12
X - AXIS TRAVEL                        12"
Z- AXIS TRAVEL                         63"
RAPID TRAVERSE X/Z                     472/590 IPM
TAILSROCK QUILL DIAMETER               5.1"
TAILSTOCK QUILL STROKE                 5.9"
TAILSTOCK TRAVEL                       56.8"
MAIN MOTOR                             35 HP AC
MACHINE WEIGHT                         23,600 LBS.
