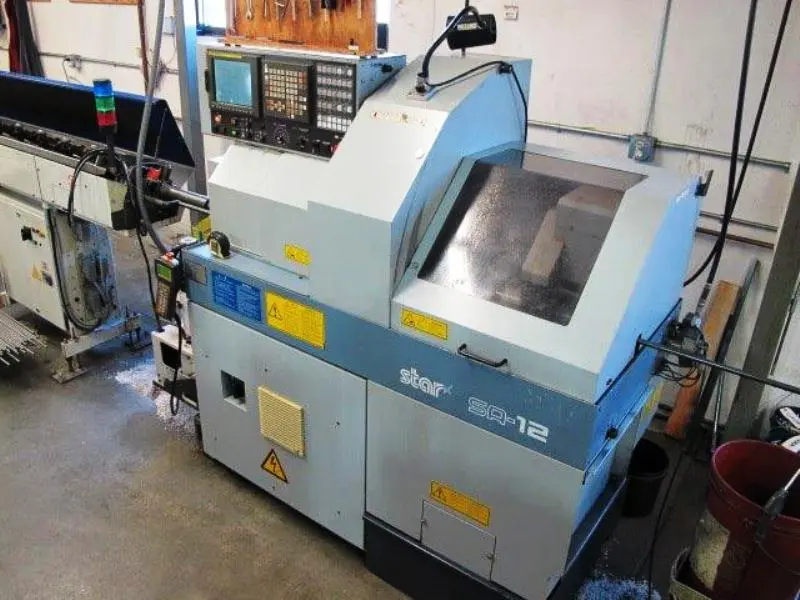

STAR SA-12/16 CNC SWISS LATHE
Have one to sell?
ConditionUsed
1 available
THIS STAR SA-12/16 CNC SWISS LATHE COMES WITH AN IEMCA GENIUS 120/37 MAGAZINE BAR LOADER, A FANUC CONTROL, 16mm GUIDE BUSHINGS, PARTS CATCHER AND FRONT AND REAR FACING 4 SPINDLE ATTACHMENT FOR SIMULTANEOUS DRILLING.
SPECIFICATIONS:
CONTROLLABLE AXES X, Y, Z, ZB
MAX. TURNING DIAMETER 1/2" (5/8")
MAX. DRILLING CAPACITY
STATIONARY TOOL 9/32"
POWER-DRIVEN ATTACHMENT 5/32"
MAIN SPINDLE SPEED 500 - 12,000 RPM
MOTOR 2.2 KW/3.7 KW
INDEXING 1 DEGREE
NO. OF TOOLS: 6 OD
4 ID
4 BACKWORKING ID
3 CROSS MILL/DRILL
SUB-SPINDLE: TURNING DIAMETER 1/2" (5/8")
SPEED 00 - 8,000 RPM
MOTOR .5KW
INDEXING 15 DEGREE
DIMENSIONS (APPROX.) 83"L X 31"W X 65"H
WEIGHT (APPROX.) 3,740 LBS
FANUC 18ITA CNC CONTROL
IEMCA GENIUS 120/37 MAGAZINE BAR LOADER
16MM GUIDE BUSHING
PART CATCHER
MISC COLLETS AND GUIDE BUSHINGS
COMBINATIONS OF 6 OD TOOLS, 3 POWER DRIVEN TOOLS FOR CROSS DRILL/MILL, FRONT & REAR FACING 4-SPINDLE ATTACHMENT FOR SIMULTANEOUS DRILLING
* 3 LIVE TOOLS * SUB-SPINDLE & INDEXING *
ALL AVAILABLE MANUALS
