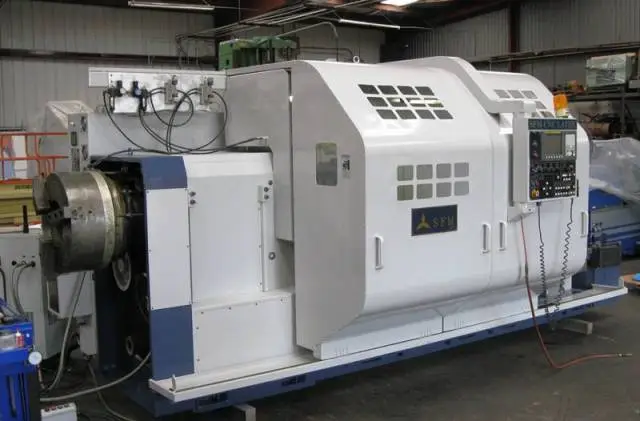

SUNFIRM CST-4260-12A HOLLOW SPINDLE CNC LATHE
Have one to sell?
ConditionUsed
1 available
THE SUNFIRM CST-4260-12A HOLLOW SPINDLE IS A FLATBED DESIGN WITH 60" CENTERS, 8 STATION TURRET, TAILSTOCK, FANUC CONTROL AND 2 CHIP CONVEYORS.
SPECIFICATIONS:
SWING OVER BED 42
SWING OVER CROSS SLIDE 27
CENTER DISTANCE 60
SPINDLE NOSE A2-20
SPINDLE BORE 12
SPINDLE SPEEDS 1-680 RPM
(LIMITED TO 500RPM FOR CHUCKS)
HEADSTOCK 2 SPEED GEARED HEADSTOCK
CROSS SLIDE TRAVEL 26
X & Z AXIS MOTORS 4 & 9 HP
TOOL STATIONS 8 STATION VERTICAL TURRET
TURNING TOOLS 1.25
BORING BAR TOOLS 2 MAX.
TAILSTOCK MT. # 6 QUILL, 10 STROKE
MAIN MOTOR 30/35 HP 30 MINUTE RATING
CHUCKS F&R ASI/RHOM 600 (23.6")/
275 EXTENDED STROKE
CHIP CONVEYOR YES, 2
MACHINE WEIGHT 26,000 LBS.
FANUC OiTC CNC CONTROL
CHIP CONVEYORS - 2
THE SUNFIRM CST-4260-12A HOLLOW SPINDLE IS A FLATBED DESIGN WITH 60" CENTERS, 8 STATION TURRET, TAILSTOCK, FANUC CONTROL AND 2 CHIP CONVEYORS.
Imperial
| Max. Swing | 42" |
| Max Turning Diameter | 27" |
| Spindle Bore/Max Bar Capacity | 12 |
| Z Travel | 60" |
| X Travel | 26" |
| Machining Length | 60" |
| Chuck Size | 23.6" |
| Chuck Type | Air |
| Spindle Speeds (RPM) | 680 |
| Spindle Bore/Bar Capacity | 12 in |
| Max. Bar Capacity | 12" |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Control | CNC (FANUC 0i-TC) |
| Weight | 26,000 LBS |
SPECIFICATIONS:
SWING OVER BED 42
SWING OVER CROSS SLIDE 27
CENTER DISTANCE 60
SPINDLE NOSE A2-20
SPINDLE BORE 12
SPINDLE SPEEDS 1-680 RPM
(LIMITED TO 500RPM FOR CHUCKS)
HEADSTOCK 2 SPEED GEARED HEADSTOCK
CROSS SLIDE TRAVEL 26
X & Z AXIS MOTORS 4 & 9 HP
TOOL STATIONS 8 STATION VERTICAL TURRET
TURNING TOOLS 1.25
BORING BAR TOOLS 2 MAX.
TAILSTOCK MT. # 6 QUILL, 10 STROKE
MAIN MOTOR 30/35 HP 30 MINUTE RATING
CHUCKS F&R ASI/RHOM 600 (23.6")/
275 EXTENDED STROKE
CHIP CONVEYOR YES, 2
MACHINE WEIGHT 26,000 LBS.
FANUC OiTC CNC CONTROL
CHIP CONVEYORS - 2
