WEILLER E-70/ 3000 FLATBED
Have one to sell?
ConditionUsed
1 available
IF YOU'RE THREADING, THE WEILLER E-70/ 3000 HAS 120" BETWEEN CENTERS, A 20" CHUCK WITH 8.5" BORE. IT HAS A SIEMENS 840D CONTROL, 1 LARGE STEADY REST ALONG WITH A BORING BAR HOLDER AND CHIP CONVEYOR.

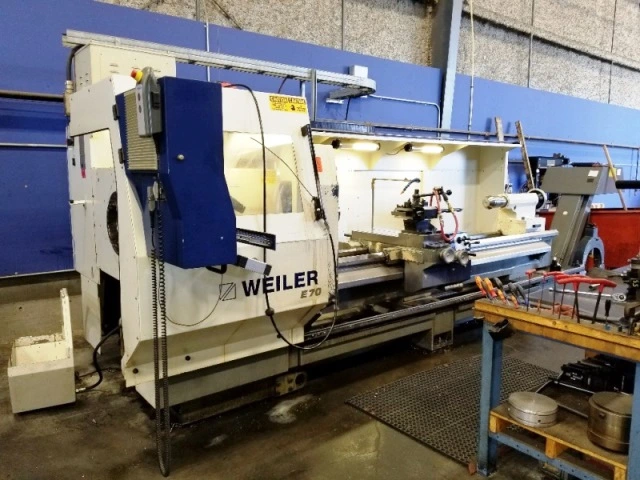

WEILER E 70/3000 CNC FLATBED TURNING CENTER
NEW 2008
SPECIFICATIONS:
MAXIMUM SWING OVER BED 28.36"
MAX. TURNING DIAMETER 16.93"
DISTANCE BETWEEN CENTERS 118.1"
SPINDLE BORE DIAMETER 8.5"
CHUCK SIZE 20"
SPINDLE NOSE D1-11"
SPINDLE SPEEDS 1800 RPM
NUMBER OF GEAR RANGES 2
TURRET CONFIGURATION 4-POSITION
MAX. WEIGHT - SHAFT WORK 3300 LBS.
MAX. WEIGHT CHUCKING 880 LBS.
X - AXIS 16.14"
Z - AXIS 118"
RAPID TRAVERSE RATE X, Z 597, 597 IPM
ACCURACY OF PROCESSED SURFACES 4.53"
ACCURACY OF CROSS SECTION DIAM 5.9"
TAIL STOCK TAPER MT 6
MAIN MOTOR 50 HP
EQUIPPED WITH:
SIEMENS 840D CNC CONTROL
(1) LARGE STEADY REST
ALL AVAILABLE TOOL HOLDERS
BORING BAR HOLDER
CHIP CONVEYOR
ALL AVAILABLE MANUALS
IF YOU'RE THREADING, THE WEILLER E-70/ 3000 HAS 120" BETWEEN CENTERS, A 20" CHUCK WITH 8.5" BORE. IT HAS A SIEMENS 840D CONTROL, 1 LARGE STEADY REST ALONG WITH A BORING BAR HOLDER AND CHIP CONVEYOR.
Imperial
| Max. Swing | 28.36" |
| Max Turning Diameter | 16.93" |
| Spindle Bore/Max Bar Capacity | 8.5 |
| Z Travel | 118" |
| X Travel | 16.14" |
| Machining Length | 118.1" |
| Chuck Size | 20" |
| Chuck Type | Air |
| Spindle Motor | 50 hp |
| Spindle Speeds (RPM) | 1800 |
| Spindle Bore/Bar Capacity | 8.5 in |
| Max. Bar Capacity | 8.5" |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Steady Rest | Yes |
| Control | CNC (SIEMENS 840D) |
WEILER E 70/3000 CNC FLATBED TURNING CENTER
NEW 2008
SPECIFICATIONS:
MAXIMUM SWING OVER BED 28.36"
MAX. TURNING DIAMETER 16.93"
DISTANCE BETWEEN CENTERS 118.1"
SPINDLE BORE DIAMETER 8.5"
CHUCK SIZE 20"
SPINDLE NOSE D1-11"
SPINDLE SPEEDS 1800 RPM
NUMBER OF GEAR RANGES 2
TURRET CONFIGURATION 4-POSITION
MAX. WEIGHT - SHAFT WORK 3300 LBS.
MAX. WEIGHT CHUCKING 880 LBS.
X - AXIS 16.14"
Z - AXIS 118"
RAPID TRAVERSE RATE X, Z 597, 597 IPM
ACCURACY OF PROCESSED SURFACES 4.53"
ACCURACY OF CROSS SECTION DIAM 5.9"
TAIL STOCK TAPER MT 6
MAIN MOTOR 50 HP
EQUIPPED WITH:
SIEMENS 840D CNC CONTROL
(1) LARGE STEADY REST
ALL AVAILABLE TOOL HOLDERS
BORING BAR HOLDER
CHIP CONVEYOR
ALL AVAILABLE MANUALS
