DECKEL MAHO DMC 100U DUOBLOCK 5-AXIS CNC HORIZONTAL
MACHINING CENTERS, HORIZONTAL.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)

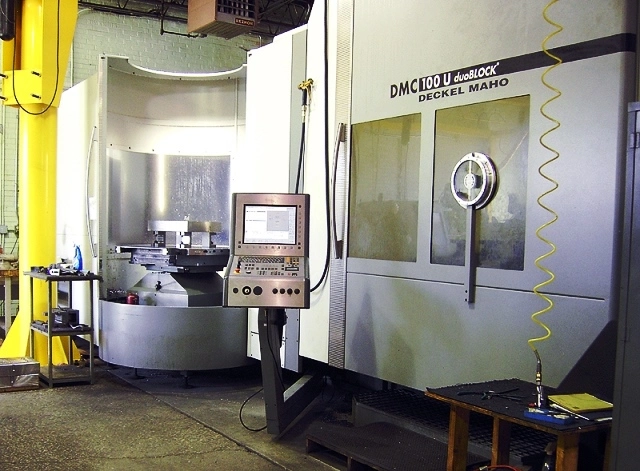

THIS DECKEL MAHO DMC 100U DUOBLOCK 5-AXIS CNC HORIZONTAL FEATURES A HEIDENHAIN 3D CONTOURING ITNC 530 FULL 5 AXIS CNC CONTROL, (6) 39.4" x 31.5" PALLETS, B-AXIS SWIVELING HEAD, 120 STATION ATC, 18,000 RPM SPINDLE, HEIDENHAIN TS641 PROBE AND HIGH PRESSURE THRU SPINDLE COOLANT.
| X-AXIS TRAVEL | 39.4" |
| PALLET SIZE | 39.4" X 31.5" |
| 4 AXIS PALLET TABLE INDEXING | .001 |
| TOOL CAPACITY (ATC) | 120 |
| SPINDLE TAPER | HSK 100 |
| NUMBER OF PALLETS | 6 |
| PALLET SIZE (W) | 39.4" |
| PALLET SIZE (L) | 31.5" |
| PALLET LOAD CAPACITY | 3310 lb |
| Y-AXIS TRAVEL | 39.4" |
| Z-AXIS TRAVEL | 39.4" |
| SPINDLE SPEED | 10000 rpm |
| 5 AXIS PROGRAMMABLE AXIS'S | YES |
| SPINDLE DRIVE MOTOR | 50 hp |
| PART PROBE | YES |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| CHIP CONVEYOR | Yes |
| Control | CNC (HEIDENHIAN 3D CONTOURING ITNC 530 - 5 AXIS) |
SPECIFICATIONS:
LONGITUDINAL TABLE TRAVEL (X-AXIS) 39.4"
VERTICAL TRAVEL (Y-AXIS) 39.4"
HEAD CROSS TRAVEL (Z-AXIS) 39.4"
HEAD TILT (B-AXIS) 190 DEGREE
PALLET ROTATION (C-AXIS) 360 DEGREE
PALLET DIMENSIONS 39.4" X 31.5"
MAXIMUM PALLET LOAD 3,310 LBS
NUMBER OF PALLETS 6
NUMBER OF INDEX POSITIONS 360,000
FEED RATE, ALL AXES .04 - 630 IPM
RAPID TRAVERSE, ALL AXES 1260 IPM
SPINDLE HORSEPOWER 40 HP
MAXIMUM SPINDLE SPEED 18,000 RPM
SPINDLE TAPER #40 CAT
NUMBER OF TOOL POSITIONS 120
APPROXIMATE MACHINE DIMENSIONS 282" X 192"
APPROXIMATE MACHINE HEIGHT 134"
APPROXIMATE MACHINE WEIGHT 49,200 LBS
HEIDENHIAN 3D CONTOURING ITNC 530 CNC CONTROL
FULL 5-AXIS CONTOURING CONTROL
AUTOMATIC PALLET CHANGER WITH (6) 39.4" X 31.5" PALLETS
B-AXIS SWIVELING SPINDLE HEAD
60 DEGREE CONTOURING PALLET ROTATION
120 STATION AUTOMATIC TOOL CHANGER
18,000 RPM
CAT-40 SPINDLE,
HEIDENHAIN TS641 PROBE
OMAT ADAPTIVE CONTROL
DMG MESSENGER
TOOL PROBE
RIGID TAPPING
HIGH PRESSURE THRU SPINDLE COOLANT
MACHINING LOOK AHEAD
THRU THE SPINDLE COOLANT
CHIP CONVEYOR
COOLANT SYSTEM
