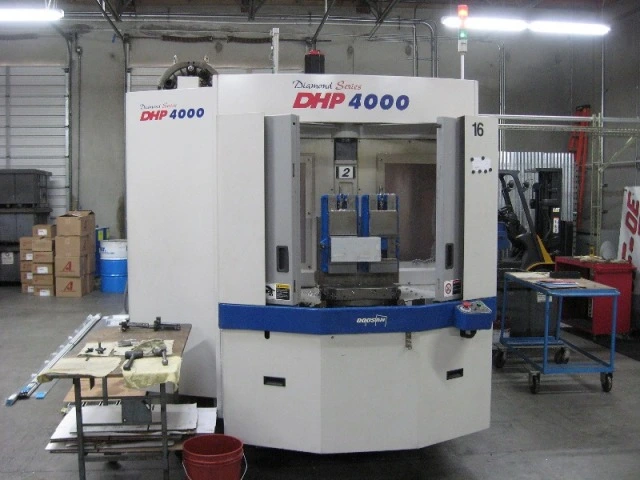

DOOSAN DHP 4000/ 4 AXIS HORIZONTAL
Have one to sell?
ConditionUsed
1 available
HERE'S A DOOSAN DHP 4000/ 4 AXIS HORIZONTAL WITH A FANUC 18iM CNC CONTROL, 60 ATC, BIG PLUS SPINDLE, 230 PSI COOLANT THRU - PREPPED FOR 1000.
SPECIFICATIONS:
X AXIS TRAVEL 23.6"
Y AXIS TRAVEL 22.0"
Z AXIS TRAVEL 23.6"
PALLET TABLE SIZE 15.75" X 15.75" (400mm)
MAX TABLE LOAD 880 LBS
PALLET INDEX TIME 5.9 SECONDS
SPINDLE NOSE TO PALLET CENTER 5.9" - 29.5"
SPINDLE CENTER TO PALLET TOP 1.97"-24.0"
SPINDLE TAPER ISO 40
SPINDLE SPEED RANGE 140 - 14,000 RPM
SPINDLE MOTOR 30HP
RAPID TRAVERSE RATES 2,362
TOOL CHANGER 60 POSITION
MACHINE WEIGHT 27,500 LBS
MACHINE DIMENSIONS 100" x 192" x 113"
FANUC 18iM CONTROL
10.4" COLOR MONITOR
FULL 4TH AXIS
GRAPHIC DISPLAY
RENISHAW NC4 LASER TOOL PROBE
M CODES (4)
RIGID TAPPING
230 PSI COOLANT THRU/PREP FOR 1000PSI
DAIKIN SPINDLE CHILLER
AIR THROUGH SPINDLE SYSTEM
SPINDLE TAPER AIR BLOW
220/3 PHASE 65KVA
DIRECT BALLSCREW MOUNTED SERVO MOTORS
AUTOMATIC PALLET CHANGER
PULSE GENERATOR
FLOOD COOLANT
CUSTOM MACRO B
BIG PLUS DUAL CONTACT SPINDLE
OIL JACKET SPINDLE COOLER
DOUBLE PRE TENSIONED BALL SCREWS
PART PROGRAM STORAGE 2100 FEET
CHIP CONVEYOR
ALL AVAILABLE MANUALS
HERE'S A DOOSAN DHP 4000/ 4 AXIS HORIZONTAL WITH A FANUC 18iM CNC CONTROL, 60 ATC, BIG PLUS SPINDLE, 230 PSI COOLANT THRU - PREPPED FOR 1000.
Imperial
| X-AXIS TRAVEL | 23.6" |
| Y-AXIS TRAVEL | 22" |
| Z-AXIS TRAVEL | 23.6" |
| SPINDLE TAPER | CAT 40 |
| SPINDLE DRIVE MOTOR | 30 hp |
| SPINDLE SPEED | 14000 rpm |
| TOOL CAPACITY (ATC) | 60 |
| NUMBER OF PALLETS | 2 |
| PALLET SIZE | 15.75" X 15.75" (400mm) |
| PALLET SIZE (W) | 15.75" |
| PALLET SIZE (L) | 15.75" |
| PALLET LOAD CAPACITY | 880 lb |
| 4 AXIS PALLET TABLE INDEXING | YES |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| HI-PRESSURE COOLANT SYSTEM | 230 psi |
| CHIP CONVEYOR | Yes |
| Control | CNC (FANUC 18iM CONTROL) |
| Dimensions | 100" x 192" x 113" |
| Weight | 27,500 LBS |
SPECIFICATIONS:
X AXIS TRAVEL 23.6"
Y AXIS TRAVEL 22.0"
Z AXIS TRAVEL 23.6"
PALLET TABLE SIZE 15.75" X 15.75" (400mm)
MAX TABLE LOAD 880 LBS
PALLET INDEX TIME 5.9 SECONDS
SPINDLE NOSE TO PALLET CENTER 5.9" - 29.5"
SPINDLE CENTER TO PALLET TOP 1.97"-24.0"
SPINDLE TAPER ISO 40
SPINDLE SPEED RANGE 140 - 14,000 RPM
SPINDLE MOTOR 30HP
RAPID TRAVERSE RATES 2,362
TOOL CHANGER 60 POSITION
MACHINE WEIGHT 27,500 LBS
MACHINE DIMENSIONS 100" x 192" x 113"
FANUC 18iM CONTROL
10.4" COLOR MONITOR
FULL 4TH AXIS
GRAPHIC DISPLAY
RENISHAW NC4 LASER TOOL PROBE
M CODES (4)
RIGID TAPPING
230 PSI COOLANT THRU/PREP FOR 1000PSI
DAIKIN SPINDLE CHILLER
AIR THROUGH SPINDLE SYSTEM
SPINDLE TAPER AIR BLOW
220/3 PHASE 65KVA
DIRECT BALLSCREW MOUNTED SERVO MOTORS
AUTOMATIC PALLET CHANGER
PULSE GENERATOR
FLOOD COOLANT
CUSTOM MACRO B
BIG PLUS DUAL CONTACT SPINDLE
OIL JACKET SPINDLE COOLER
DOUBLE PRE TENSIONED BALL SCREWS
PART PROGRAM STORAGE 2100 FEET
CHIP CONVEYOR
ALL AVAILABLE MANUALS
