DOOSAN NHM 5000/ 4 AXIS
Have one to sell?
ConditionUsed
1 available

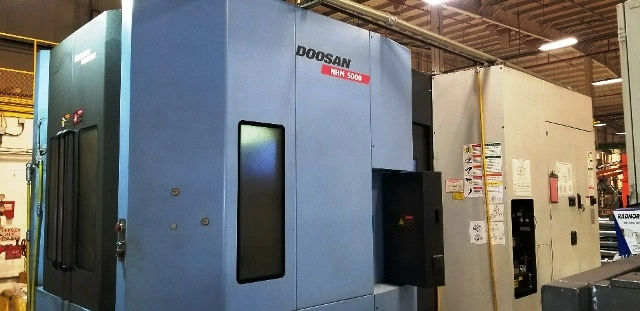

HERE'S A DOOSAN NHM 5000/ 4 AXIS CNC HORIZONTAL WITH FANUC 31iB CNC CONTROL, (2) 19.7" PALLETS, (2) TOMBSTONES, 1000 PSI COOLANT THRU AND A BIG PLUS CAT 50/ 6000 RPM SPINDLE.
SPECIFICATIONS:
PALLET DIMENSIONS 19.7" X 19.7"
NUMBER OF PALLETS 2
PALLET LOAD CAPACITY 1763 LBS.
SPINDLE NOSE TO PALLET CENTER 3.9" - 37.4"
SPINDLE CENTER TO PALLET TOP 2.9" - 30.5"
X - AXIS TRAVEL 31.5"
Y - AXIS TRAVEL 27.6"
Z - AXIS TRAVEL 33.5"
PALLET INDEXING .001 DEGREES
SPINDLE TAPER CAT#50 BIG PLUS
SPINDLE SPEED RANGE 6000 RPM
GEAR RANGES 2
MAIN MOTOR 35 HP
RAPID TRAVERSE X, Y, Z 1181 IPM
CUTTING FEED .04 - 590 IPM
NUMBER OF TOOLS 90 ATC
MAXIMUM TOOL DIAMETER 5.1" / 12.6"
MAXIMUM TOOL LENGTH 20.8"
MAXIMUM TOOL WEIGHT 66 LBS.
MACHINE WEIGHT 40,785 LBS.
FANUC 31IB CNC CONTROL
(2) TOMBSTONES WITH CHIC VISES ON 4 SIDES
0.001 DEGREE MINIMUM PROGRAMMING
1000 PSI THRU SPINDLE COOLANT
200 PAIRS ADDITIONAL TOOL OFFSETS
ABSOLUTE PULSE CODER
AICC II 200 BLOCKS
BIG PLUS CAT 50 SPINDLE
COORDINATE SYSTEM ROTATION
CUSTOM MACRO B EMBEDDED
ETHERNET OPTION
EXTRA M-CODES 8 SETS
EZ GUIDE 1 PROGRAMMING
HELICAL INTERPOLATION
HIGH TORQUE GEARED HEAD SPINDLE
INCH/METRIC SELECTION
PART PROGRAM STORAGE 640M
PITCH ERROR COMP.
REMOTE MANUAL PULSE GENERATOR
RENISHAW N/C 4 NON-CONTACT
3D TOOL MEASUREMENT SYSTEM
SPINDLE AIR CURTAIN
THREAD CUT/SYNCHRO FEED
WORK COORDINATE SYSTEM 200 PAIRS
LNS TURBO CHIP CONVEYOR
