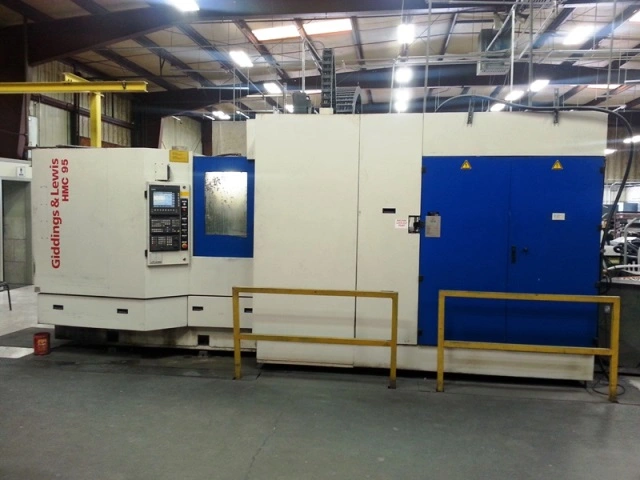

GIDDINGS & LEWIS HMC 95

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, HORIZONTAL
Manufacturer:
GIDDINGS & LEWIS
Model:
HMC 95
Year:
2001
Stock #:
4732
Status:
For Sale

Description

GIDDINGS & LEWIS HMC 95 HORIZONTAL COMES WITH A SIEMENS 840D CONTROL, THRU SPINDLE COOLANT, ROTARY TABLE, 50 STATION ATC AND (2) 20 X 20 PALLETS.

X-AXIS TRAVEL24.8"629.92 mm
Y-AXIS TRAVEL24.8"629.92 mm
Z-AXIS TRAVEL24.8"629.92 mm
SPINDLE TAPERHSK 63HSK 63
SPINDLE DRIVE MOTOR17.4 hp
SPINDLE SPEED10,000 RPM10000 rpm
TOOL CAPACITY (ATC)5050
NUMBER OF PALLETS22
PALLET SIZE20" x 20"20" x 20"
PALLET SIZE (W)20"508 mm
PALLET SIZE (L)20"508 mm
PALLET LOAD CAPACITY1325 lb
4 AXIS PALLET TABLE INDEXING.001.001
HI-PRESSURE COOLANT SYSTEM175 psi
CHIP CONVEYORYesYes
ControlCNC (SIEMENS 840D)CNC (SIEMENS 840D)

SPECIFICATIONS:
X-AXIS, CROSS TRAVEL OF PALLET   24.8"
Y-AXIS, VERTICAL HEAD TRAVEL     24.8"
Z-AXIS, COLUMN INFEED            24.8"
PALLET INDEXING, B-AXIS          (360,000)/.001 DEGREE
PALLET WEIGHT CAPACITY           1,325 LBS
PALLET SIZE                      20" X 20" (500mm)
PALLET HEIGHT (FROM FLOOR)       43.3"
NUMBER OF PALLETS                (2)
SPINDLE SPEEDS                   10-10,000 RPM
SPINDLE TAPER                    HSK-A 63
SPINDLE MOTOR                    17.4HP

SIEMENS 840D CNC CONTROL
THRU-SPINDLE COOLANT (175 PSI)
ROTARY TABLE
(2) 20"X20" PALLETS WITH AUTOMATIC PALLET CHANGER
50 STATION ATC
LINEAR SCALE ON 3 AXIS
LINEAR ROLLER BEARING WAY SYSTEM
WAY LUBRICATION SYSTEM
ENCLOSURE WORKLIGHT
CHIP CONVEYOR
LOTS OF EXTRA TOOL HOLDERS
NOTE: UNDER POWER FOR INSPECTION
