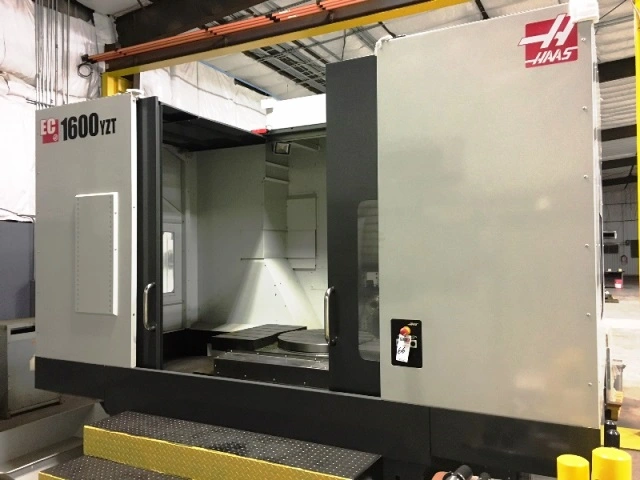

HAAS EC 1600YZT HORIZONTAL
Have one to sell?
ConditionUsed
1 available
THIS HAAS EC 1600YZT HORIZONTAL INCLUDES 300 PSI COOLANT THRU, 50 TAPER SPINDLE AND INTERACTIVE 4TH AXIS ROTARY PLATTER AND RENISHAW TOOL & PART PROBES.
SPECIFICATIONS:
X AXIS TRAVEL 64"
Y AXIS TRAVEL 50"
Z AXIS TRAVEL 40"
TABLE LENGTH 64" x 36"
SPINDLE 50 TAPER GEARED HEAD
MOTOR 30HP/ 22.4kw
SPINDLE SPEED 6000 RPM
TOOL CHANGER 30 + 1 SIDE MOUNT
MAX TORQUE 450 FT-LB @ 500 RPM
AXIS MOTORS MAX THRUST
X AXIS 4000 LB
Z & Y AXIS 8000 LB
MAX RAPIDS 750 IPM
MAX CUTTING 500 IPM
MAX TOOL DIAMETER,FULL 4.0" 4.0"
ADJ EMPTY 10.0"
TOOL TO TOOL 10.3 SEC
CHIP TO CHIP 12.6 SEC
HAAS CNC CONTROL
HAAS INTUITIVE PROGRAMMING SYSTEM
15" COLOR LCD MONITOR
300 PSI COOLANT THRU SPINDLE
INTEGRATED 4TH AXIS ROTARY PLATTER
WIRELESS INTUITIVE PROBONG SYSTEM
RENISHAW WIRELESS TOOL SETTING PROBE
RENISHAW WIRELESS WORK OFFSET PROBE
INCLUDES MACROS, SPINDLE ORIENTATION
AND COORDINATE ROTATION AND SCALING
1 MB PROGRAM MEMORY
USB PORT
RIGID TAPPING
POWER FAILURE DETECTION MODULE
COLOR REMOTE JOG HANDLE
COOLANT SYSTEM
CHIP AUGERS/ ENCLOSURES
INTERNAL HIGH VOLTAGE ISOLATED TRANSFORMER FOR 380-480V
ALL AVAILABLE MANUALS
LOTS OF UNUSED TOOLS AND TOOLING CERTIFICATE AVAILABLE FOR PURCHASE
***NEVER CUT A CHIP***
