HAAS EC 400 PALLETPOOL - 6 PALLET
Have one to sell?
ConditionUsed
1 available

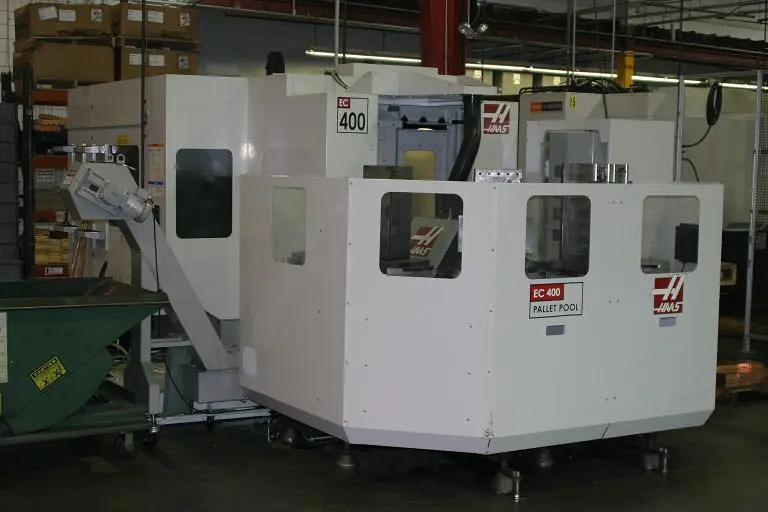

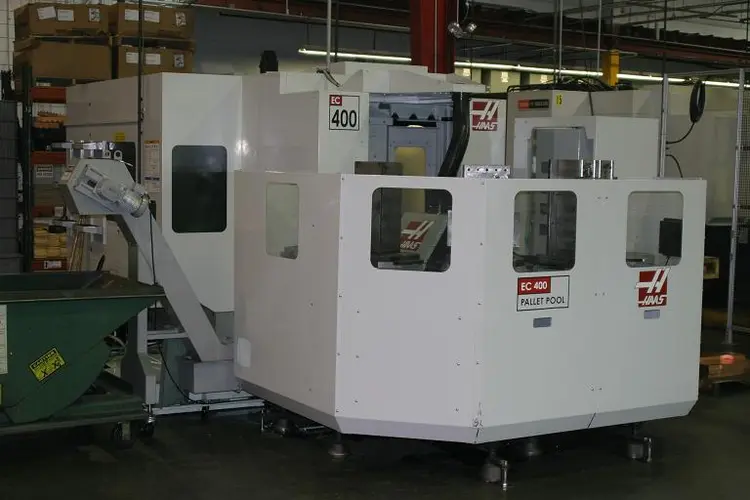

THIS HAAS EC 400 HORIZONTAL PALLETPOOL WITH (6) 15.75" PALLETS IS EQUIPPED WITH A 70 TOOL ATC AND 300 PSI COOLANT THRU. CAT 40/ 12000 RPM SPINDLE.
SPECIFICATIONS:
PALLET POOL 6 PALLETS
PALLET SIZE 400mm (15.75")
TRAVELS 20/20/20
MOTOR 20HP
SPINDLE SPEED 12,000 RPM
SPINDLE NOSE Cat 40
TOOL CHANGER 70+1 SIDE MOUNT
TABLE LOAD CAPACITY 1000 LBS
EQUIPPED WITH:
HAAS CNC CONTROL
EC 400 PALLETPOOL 6 PALLET HORIZONTAL
INSTALLED IN 01/07
15" LCD MONITOR
3 AXIS/1 DEGREE INDEXING
12,000 RPM SPINDLE
INLINE DIRECT DRIVE
RIGID TAPPING
1 MB PROGRAM MEMORY
2nd HOME BUTTON
300 PSI COOLANT THRU
USB PORT
BELT TYPE CHIP CONVEYOR
THIS HAAS EC 400 HORIZONTAL PALLETPOOL WITH (6) 15.75" PALLETS IS EQUIPPED WITH A 70 TOOL ATC AND 300 PSI COOLANT THRU. CAT 40/ 12000 RPM SPINDLE.
Imperial
| X-AXIS TRAVEL | 20" |
| Y-AXIS TRAVEL | 20" |
| Z-AXIS TRAVEL | 20" |
| SPINDLE TAPER | CAT 40 |
| SPINDLE DRIVE MOTOR | 20 hp |
| SPINDLE SPEED | 12000 rpm |
| TOOL CAPACITY (ATC) | 71 |
| NUMBER OF PALLETS | 6 |
| PALLET SIZE | 15.75" x 15.75" |
| PALLET SIZE (W) | 15.75" |
| PALLET SIZE (L) | 15.75" |
| PALLET LOAD CAPACITY | 1000 lb |
| 4 AXIS PALLET TABLE INDEXING | 1 Degree Index |
| PART PROBE | YES |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| HI-PRESSURE COOLANT SYSTEM | 300 psi |
| CHIP CONVEYOR | Yes |
| Control | CNC (HAAS) |
SPECIFICATIONS:
PALLET POOL 6 PALLETS
PALLET SIZE 400mm (15.75")
TRAVELS 20/20/20
MOTOR 20HP
SPINDLE SPEED 12,000 RPM
SPINDLE NOSE Cat 40
TOOL CHANGER 70+1 SIDE MOUNT
TABLE LOAD CAPACITY 1000 LBS
EQUIPPED WITH:
HAAS CNC CONTROL
EC 400 PALLETPOOL 6 PALLET HORIZONTAL
INSTALLED IN 01/07
15" LCD MONITOR
3 AXIS/1 DEGREE INDEXING
12,000 RPM SPINDLE
INLINE DIRECT DRIVE
RIGID TAPPING
1 MB PROGRAM MEMORY
2nd HOME BUTTON
300 PSI COOLANT THRU
USB PORT
BELT TYPE CHIP CONVEYOR
