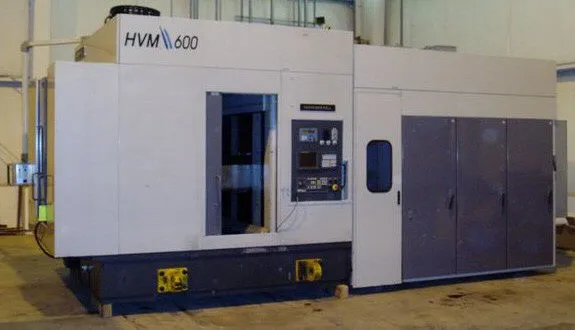

INGERSOLL HVM 600A 4-AXIS HORIZONTAL

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, HORIZONTAL
Manufacturer:
INGERSOLL
Model:
HVM 600A 4-AXIS HORIZONTAL
Year:
1998
Stock #:
1415
Status:
For Sale
Serial #:
41067

Description

THIS INGERSOLL HVN 600A 4 AXIS HORIZONTAL INCLUDES 1 TOMBSTONE, LOAD STATION WITH PALLET CHANGER, A 40 TOOL ATC, THRU SPINDLE COOLANT AND A FANUC 15M CNC CONTROL.

X-AXIS TRAVEL40.55"1,030 mm
Y-AXIS TRAVEL40.55"1,030 mm
Z-AXIS TRAVEL23.62"599.95 mm
SPINDLE TAPERHSK 63HSK 63
SPINDLE DRIVE MOTOR50 hp
SPINDLE SPEED20,000 RPM20000 rpm
TOOL CAPACITY (ATC)4040
NUMBER OF PALLETS22
PALLET SIZE24.803" X 24.803"24.803" X 24.803"
PALLET SIZE (W)24.8"629.92 mm
PALLET SIZE (L)24.8"629.92 mm
4 AXIS PALLET TABLE INDEXING.001.001
CHIP CONVEYORYesYes
ControlCNC (FANUC 15M)CNC (FANUC 15M)
Weight54,000 LBS54,000 LBS

SPECIFICATIONS:
PALLET SIZE 24.803" X 24.803"
X-AXIS TRAVEL 40.55"
Y-AXIS TRAVEL 40.55"
Z-AXIS TRAVEL 23.62"
4TH AXIS 360,000 DEG
FEEDRATE (ALL AXES) 3000 IPM
TOOL ADAPTER (SPINDLE TAPER) HSK 63A
SPINDLE SPEEDS, MAX 20000 RPM
TIME TO MAX. SPEED 1.3 SEC MOTOR
HORSEPOWER 50 HP
TORQUE, MAX 394" LBS
ELECTRICAL SYSTEM 480/3/60
WEIGHT, APPROXIMATELY 54000 LBS

FANUC 15M CONTROLLER
FULL 4TH AXIS
(1) MACHINING TOMBSTONE
LOAD STATION W/PALLET CHANGER
ALPHA SERIES LINEAR MOTOR DRIVES
HYDROSTATIC SPINDLE
40-TOOL AUTOMATIC TOOL CHANGER
CHIP SEPARATOR & CONVEYOR
THRU-SPINDLE COOLANT
ALL AVAILABLE MANUALS
