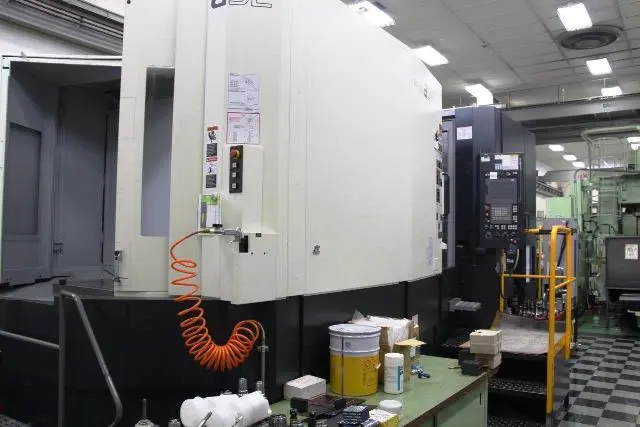

MAKINO a 92/ 5 AXIS HORIZONTAL MACHINING CENTER

SPECIFICATIONS:
TAPER:                          HSK A-100
PALLET SIZE:                    31.5" X 39.4"
NO. OF TOOLS:                   148
PALLET INDEX:                   4th AXIS
TABLE SIZE L X W                31.500 X 39.400
X1                              59.800 IN.
Y1                              49.200 IN.
Z1                              53.100 IN.
B1                              STD. 360,000 DEG
MAX. WORKPIECE WEIGHT (LBS)     2,640
SPINDLE NOSE TO TABLE EDGE      37.400
SPINDLE TO TABLE CENTER         1.960
PALLET CHANGER   STANDARD       NO. OF PALLET       2
ROTARY TABLE                    OPTIONAL NC ROTARY TABLE
NUM. MAIN SPINDLES              1
ORIENTATION                     HORIZONTAL
TOP RPM                         OPT: 8,000
HORSE POWER (30 MIN RATING)     47.00
# SPEED RANGES                  2
TYPE                            FIXED
NUMBER OF TOOLS                 OPT. 148
TOOL CHANGE TIME C-TO-C (SEC)   4.20   1.70 SEC TOOL-TO-TOOL
MAX. TOOL LENGTH (IN.)          35.400
MAX. TOOL DIAMETER (IN.)        13.800 (WITH EMPTY ADACENT POCKETS)
MAX. TOOL WEIGHT                77.00
AXES AND TRAVELS
RAPID RATE X1                   1,969 IPM
           Y1                   1,969 IPM
           Z1                   1,969 IPM
MACHINE DIMENSIONS (L/W/H)(IN.) 136 X 197 X 133
