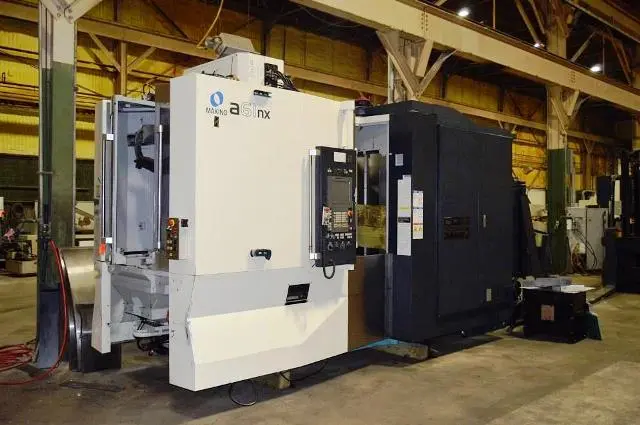

MAKINO a 61/ 4 AXIS HORIZONTAL MACHINING CENTER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, HORIZONTAL
Manufacturer:
MAKINO
Model:
a 61/ 4 AXIS
Year:
2013
Stock #:
5366
Status:
For Sale
Serial #:
437

Description

COMING FROM A SHOP IN THE MIDWEST, THE MAKINO A-61NX 4 AXIS CNC HORIZONTAL MACHINING CENTER HAS A PRO 5 CONTROL, COOLANT THRU SPINDLE, FULL 4TH, 60 POSITION ATC AND A CAT 40/ 14000 RPM SPINDLE.

X-AXIS TRAVEL28.7"728.98 mm
Y-AXIS TRAVEL25.6"650.24 mm
Z-AXIS TRAVEL31.5"800.1 mm
SPINDLE TAPERCAT 40CAT 40
SPINDLE DRIVE MOTOR30 hp
SPINDLE SPEED14000 rpm
TOOL CAPACITY (ATC)6060
NUMBER OF PALLETS22
PALLET SIZE19.7" x 19.7"19.7" x 19.7"
PALLET SIZE (W)19.7"500.38 mm
PALLET SIZE (L)19.7"500.38 mm
PALLET LOAD CAPACITY1100 lb
4 AXIS PALLET TABLE INDEXING.001.001
CHIP CONVEYORYesYes
ControlCNC (PRO 5)CNC (PRO 5)
Weight26,900 LBS26,900 LBS

MAKINO A-61NX CNC HORIZONTAL MACHINING CENTER
NEW 2013

SPECIFICATIONS:
# AXIS                 4
PALLET-W               19.7"
PALLET-L               19.7"
PALLET CAPACITY        1100 POUNDS
PALLET INDEX (B-AXIS)  .001
X AXIS TRAVEL          28.7"
Y AXIS TRAVEL          25.6"
Z AXIS TRAVEL          31.5"
X-AXIS RAPID FEEDRATE  1968 IPM
Y-AXIS RAPID FEEDRATE  1968 IPM
Z-AXIS RAPID FEEDRATE  1968 IPM
SPINDLE SPEED          14000
SPINDLE TAPER          CAT 40
TOOL CHANGER CAPACITY  60
POWER                  30 HORSEPOWER
WEIGHT                 26900 POUNDS

PRO 5 CONTROL
HYDRAULIC CLAMPING
COOLANT THRU SPINDLE
FULL 4TH AXIS
COOLANT TANK & PUMPS
CHIP CONVEYOR

Overview

Type:
MACHINING CENTERS, HORIZONTAL
Manufacturer:
MAKINO
Model:
a 61/ 4 AXIS
Year:
2013
Stock #:
5366
Status:
For Sale
Serial #:
437

Description

COMING FROM A SHOP IN THE MIDWEST, THE MAKINO A-61NX 4 AXIS CNC HORIZONTAL MACHINING CENTER HAS A PRO 5 CONTROL, COOLANT THRU SPINDLE, FULL 4TH, 60 POSITION ATC AND A CAT 40/ 14000 RPM SPINDLE.

Specifications

Imperial

X-AXIS TRAVEL28.7"
Y-AXIS TRAVEL25.6"
Z-AXIS TRAVEL31.5"
SPINDLE TAPERCAT 40
SPINDLE DRIVE MOTOR30 hp
SPINDLE SPEED14000 rpm
TOOL CAPACITY (ATC)60
NUMBER OF PALLETS2
PALLET SIZE19.7" x 19.7"
PALLET SIZE (W)19.7"
PALLET SIZE (L)19.7"
PALLET LOAD CAPACITY1100 lb
4 AXIS PALLET TABLE INDEXING.001
CHIP CONVEYORYes
ControlCNC (PRO 5)
Weight26,900 LBS

MAKINO A-61NX CNC HORIZONTAL MACHINING CENTER
NEW 2013

SPECIFICATIONS:
# AXIS                 4
PALLET-W               19.7"
PALLET-L               19.7"
PALLET CAPACITY        1100 POUNDS
PALLET INDEX (B-AXIS)  .001
X AXIS TRAVEL          28.7"
Y AXIS TRAVEL          25.6"
Z AXIS TRAVEL          31.5"
X-AXIS RAPID FEEDRATE  1968 IPM
Y-AXIS RAPID FEEDRATE  1968 IPM
Z-AXIS RAPID FEEDRATE  1968 IPM
SPINDLE SPEED          14000
SPINDLE TAPER          CAT 40
TOOL CHANGER CAPACITY  60
POWER                  30 HORSEPOWER
WEIGHT                 26900 POUNDS

Equipped With

PRO 5 CONTROL
HYDRAULIC CLAMPING
COOLANT THRU SPINDLE
FULL 4TH AXIS
COOLANT TANK & PUMPS
CHIP CONVEYOR
