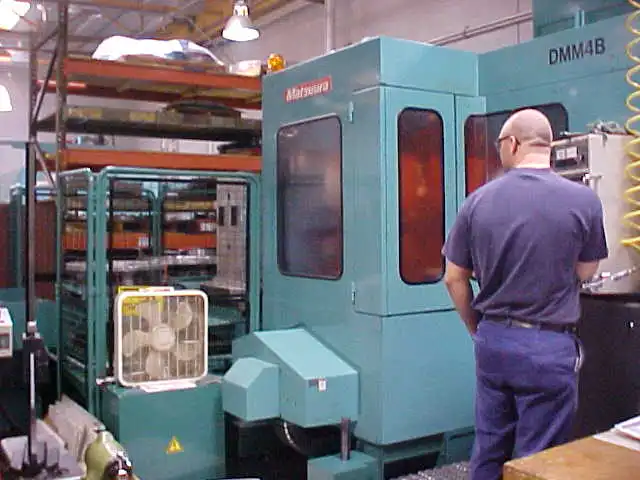

MATSUURA MC900H W/6APC 4-AXIS HORIZONTAL MACHINING CENTER

MATSUURA MC900H W/6APC 4-AXIS HORIZONTAL MACHINING CENTER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, HORIZONTAL
Manufacturer:
MATSUURA
Model:
MC 900H W/6APC
Year:
1998
Stock #:
144
Status:
For Sale

Description

THIS MATSUURA MC900H W/6APC 4-AXIS HORIZONTAL MACHINING CENTER HAS A FANUC 15MB CONTROL, CAT 50/ 6000 RPM SPINDLE, 6-25" PALLETS AND A 50 TOOL ATC.

X-AXIS TRAVEL36.22"919.99 mm
Y-AXIS TRAVEL28.34"719.84 mm
Z-AXIS TRAVEL29.92"759.97 mm
SPINDLE TAPERCAT 50CAT 50
SPINDLE DRIVE MOTOR20 hp
SPINDLE SPEED6,000 RPM6000 rpm
TOOL CAPACITY (ATC)5050
NUMBER OF PALLETS66
PALLET SIZE24.8" x 24.8"24.8" x 24.8"
PALLET SIZE (W)24.8"629.92 mm
PALLET SIZE (L)24.8"629.92 mm
PALLET LOAD CAPACITY2645 lb
4 AXIS PALLET TABLE INDEXING.001.001
CHIP CONVEYORYesYes
ControlCNC (FANUC 15MB)CNC (FANUC 15MB)
Weight34,612 LBS34,612 LBS

SPECIFICATIONS:
PALLET SIZE 24.8" X 24.8"
TABLE LOAD CAPACITY 2645 LBS.
AXIS TRAVEL X - AXIS 36.22"
Y - AXIS 28.34"
Z - AXIS 29.92"
TABLE INDEXING .001 DEGREE
SPINDLE DRIVE MOTOR 20 H.P.AC
GEAR RANGES 3 SPEED
SPINDLE TAPER # 50
SPINDLE SPEEDS 6,000 RPM
RAPID TRAVERSE RATE 590 IPM X,Y,Z
AUTO TOOL CHANGE CAPACITY 50 ATC
MACHINE WEIGHT 34,612 LBS.W/OUT APC

FANUC 15MB CNC CONTROL
6 PALLET APC
4-AXIS CONTOURING TABLE (.001)
HELICAL INTERPOLATION
COOLANT
RIGID TAP
SPINDLE CHILLER
FULL ENCLOSURE
