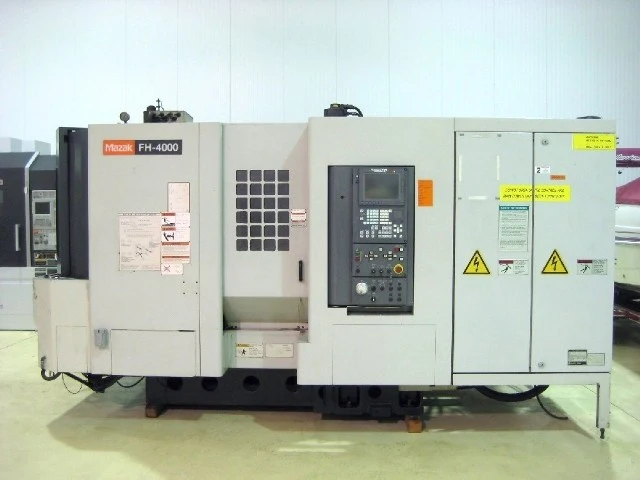

MAZAK FH 4000

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, HORIZONTAL
Manufacturer:
MAZAK
Model:
FH 4000
Year:
2001
Stock #:
3180
Status:
For Sale
Serial #:
150302/150440

Description

THIS FH 4000 HAS (2) 15.74" PALLETS, FUSION 640M CONTROL, 213 PSI COOLANT THRU, RENISHAW MP12 TOUCH PROBE AND A CAT 40/ 12000 RPM SPINDLE.

X-AXIS TRAVEL22.04"559.82 mm
Y-AXIS TRAVEL20.07"509.78 mm
Z-AXIS TRAVEL24.83"630.68 mm
SPINDLE TAPERCAT 40CAT 40
SPINDLE DRIVE MOTOR30 hp
SPINDLE SPEED12,000 RPM12000 rpm
TOOL CAPACITY (ATC)4040
NUMBER OF PALLETS22
PALLET SIZE15.7" x 15.74"15.7" x 15.74"
PALLET SIZE (W)15.74"399.8 mm
PALLET SIZE (L)15.74"399.8 mm
PALLET LOAD CAPACITY661 lb
4 AXIS PALLET TABLE INDEXING1 Degree Index1 Degree Index
PART PROBEYESYES
TOOL PROBE/AUTO TOOL LENGTH MEASUREYesYes
HI-PRESSURE COOLANT SYSTEM213 psi
CHIP CONVEYORYesYes
ControlCNC (MAZATROL FUSION 640M)CNC (MAZATROL FUSION 640M)

SPECIFICATIONS
PALLET SIZE (2 PALLETS)             15.74" X 15.74"
PALLET INDEXING                     1 DEGREE
MAXIMUM LOAD ON PALLET              661 LBS
X-AXIS TRAVEL                       22.04"
Y-AXIS TRAVEL                       20.07"
Z-AXIS TRAVEL                       24.83"
SPINDLE SPEEDS (RPM)                12,000 RPM
SPINDLE TAPER                       CAT # 40
MAIN MOTOR (HP)                     30 HP
TOOL CHANGER POSITIONS              40 ATC

MAZATROL FUSION 640M CONVERSATIONAL COLOR CNC CONTROL
RS-232C PORT INTERFACE FOR DNC OPERATION
COOLANT THROUGH THE SPINDLE (213 PSI)
RENISHAW MP12 TOUCH PROBE FOR INSPECTION & WORK OFFSETS
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
CHIP CONVEYOR (REAR EXIT), SPINDLE CHILLER & OIL COOLER
SHOWER (CURTAIN TYPE) COOLANT SYSTEM (53 GPM)
ADAPTIVE FEEDRATE CONTROL, FLOOD COOLANT SYSTEM
FULLY ENCLOSED GUARDING
ALL AVAILABLE MANUALS
